Premium Aftermarket Parts for Symons® Cone Crusher
Symons cone crusher has been a legend in mining and mining and aggregate processing industries since it’s originally designed and developed by Symons brothers in 1920s, until now, there are tens of thousands of Symons cone crusher are still running in the world. The maximum efficiency which can be obtained from the crusher is directly dependent on the quality of the parts. Powerups has been specializing in manufacturing premium quality aftermarket wear and replacement parts since 1990s, providing more competitive parts and service worldwide than typical parts suppliers. In most of cases, we have the parts on shelf or castings in stock, which effectively shortens the lead time. We are able to supply premium quality aftermarket parts to fit all models of both Symons® standard cone crusher and shorthead cone crusher such as 2ft, 3ft, 4ft, 4 1/4ft, 5 1/2ft, 7ft heavy duty, 7ft extra heavy duty and 7ft super extra heavy duty. In addition, Powerups offers full line of quality parts aftermarket to fit Gyradisc® cone crusher, HP Series™ cone crusher, GP Series™ cone crusher, C Series™ jaw crusher, MP Series™ cone crusher, Omnicone Series® cone crusher , Sandvik® Hydrocone™ and Superior™ cone crusher components.
Symons® Cone Crusher Wear Parts & Spare Parts
1. Mainframe 2. Mainframe liner 3. Arm guard
4. Mainframe seat liner
1. Counterweight 2. Eccentric gear 3. Inner eccentric bushing
4. Eccentric 5. Outer eccentric bushing 6. Step bearing plates
1. Head 2. Mainshaft 3. Head wiper ring 4. Water baffle
1. Feed plate 2. Feed distributor 3. Mainshaft nut
4. Locking collar 5. Locking nut 6. Locking nut cover
1. Adjustment ring 2. Spring 3. Seals 4. Spring bolt & nut
1. Socket 2. Spring & housing 3. Socket sealing ring
4. Socket liner 5. Water chamber
1. U-bolt assembly 2. Mainshaft sleeve 3. Torch ring
4. Feed cone

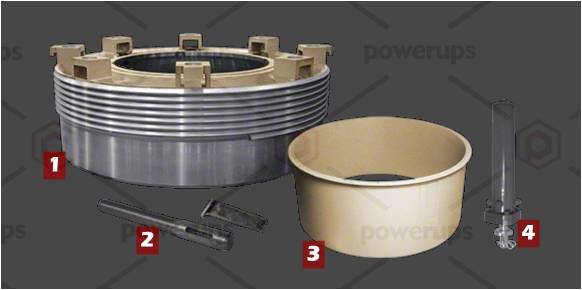

1. Bowl 2. Duckworth lock post 3. Feed hopper
4. Hydraulic lock post
Symons® Cone Crusher Parts Manual
| Model | Part Number | Description |
| 2ft | 1959-2997 | Bowl liner bolt |
| 2ft | 2005-1176 | Bowl |
| 2ft | 2005-1401 | Bowl |
| 2ft | 2206-6641 | Inner eccentric bushing |
| 2ft | 2281-4030 | Adjustment cap |
| 2ft | 2302-1101 | Main frame cap |
| 2ft | 2618-0961 | Feed cone |
| 2ft | 3113-7351 | Eccentric |
| 2ft | 3378-1436 | Mainframe |
| 2ft | 3680-7001 | Pinion |
| 2ft | 3680-8401 | Eccentric gear |
| 2ft | 3806-0941 | Arm guard |
| 2ft | 4245-7003 | Head |
| 2ft | 4245-7004 | Head |
| 2ft | 4537-5762 | Countershaft box |
| 2ft | 4545-1381 | Spring housing |
| 2ft | 4703-2415 | Tapered key |
| 2ft | 4705-5910 | Key |
| 2ft | 4709-3361 | Socket sealing ring key |
| 2ft | 4829-1921 | Bowl liner |
| 2ft | 4829-3001 | Bowl liner |
| 2ft | 4829-3541 | Bowl liner |
| 2ft | 4829-4081 | Bowl liner |
| 2ft | 4829-4351 | Bowl liner |
| 2ft | 4851-2681 | Main frame liner |
| 2ft | 4872-2335 | Socket liner |
| 2ft | 5013-1001 | Mantle |
| 2ft | 5013-1401 | Mantle |
| 2ft | 5434-7581 | Main frame pin |
| 2ft | 5598-1221 | Feed plate |
| 2ft | 5598-1781 | Feed plate |
| 2ft | 6341-5501 | Pinion thrust washer |
| 2ft | 6380-2381 | Socket sealing ring |
| 2ft | 6391-0181 | Torch ring |
| 2ft | 6482-0701 | Spring segment |
| 2ft | 6863-2501 | Countershaft |
| 2ft | 6886-1221 | Main shaft |
| 2ft | 6886-1781 | Main shaft |
| 2ft | 7058-7510 | Step bearing shim |
| 2ft | 7058-7520 | Step bearing shim |
| 2ft | 7058-7525 | Step bearing shim |
| 2ft | 7320-1691 | Main shaft sleeve |
| 2ft | 7320-2681 | Main shaft sleeve |
| 2ft | 7381-1001 | Socket |
| 2ft | 8607-7041 | Torch ring |
| 3ft | 1603-1121 | Feed hopper |
| 3ft | 1603-1781 | Bowl hopper |
| 3ft | 1934-6050 | Spring bolt |
| 3ft | 1970-5001 | U-bolt |
| 3ft | 2005-2437 | Bowl |
| 3ft | 2005-2576 | Bowl |
| 3ft | 2206-0762 | Countershaft bushing |
| 3ft | 2207-2561 | Inner eccentric bushing |
| 3ft | 2207-1401 | Inner eccentric bushing |
| 3ft | 2214-5321 | Outer eccentric bushing |
| 3ft | 2281-4850 | Adjustment cap |
| 3ft | 2618-1550 | Feed cone |
| 3ft | 2618-2186 | Feed cone |
| 3ft | 2747-5951 | Locking nut cover |
| 3ft | 3041-2875 | Feed distributor |
| 3ft | 3113-8401 | Eccentric |
| 3ft | 3113-8751 | Eccentric |
| 3ft | 3378-2727 | Main frame |
| 3ft | 3680-7353 | Pinion |
| 3ft | 3680-7703 | Pinion |
| 3ft | 3680-8753 | Eccentric gear |
| 3ft | 3680-9455 | Eccentric gear |
| 3ft | 3806-4021 | Arm guard |
| 3ft | 4246-3001 | Head |
| 3ft | 4246-3002 | Head |
| 3ft | 4246-3004 | Head |
| 3ft | 4246-3005 | Head |
| 3ft | 4573-6067 | Countershaft box |
| 3ft | 4545-1786 | Spring housing |
| 3ft | 4829-5161 | Bowl liner |
| 3ft | 4829-5431 | Bowl liner |
| 3ft | 4829-5701 | Bowl liner |
| 3ft | 4829-6530 | Bowl liner |
| 3ft | 4829-6544 | Bowl liner |
| 3ft | 4829-7591 | Bowl liner |
| 3ft | 4872-3565 | Socket liner |
| 3ft | 4872-4795 | Socket liner |
| 3ft | 5013-2201 | Mantle |
| 3ft | 5013-2501 | Mantle |
| 3ft | 5013-2801 | Mantle |
| 3ft | 5013-3401 | Mantle |
| 3ft | 5013-3801 | Mantle |
| 3ft | 5168-4896 | Main shaft nut |
| 3ft | 5434-7801 | Pin |
| 3ft | 5434-9341 | Pin |
| 3ft | 5598-2621 | Feed plate |
| 3ft | 5598-3461 | Feed plate |
| 3ft | 5683-1500 | Locking key |
| 3ft | 5759-7801 | Step bearing |
| 3ft | 5759-9350 | Step bearing |
| 3ft | 5920-7751 | Sheave |
| 3ft | 5921-4907 | Sheave |
| 3ft | 6187-3900 | Adjustment ring |
| 3ft | 6272-7401 | Locking collar |
| 3ft | 6273-2501 | Locking nut |
| 3ft | 6358-3921 | Oil flinger |
| 3ft | 6358-7771 | Oil flinger housing |
| 3ft | 6359-4701 | Socket sealing ring |
| 3ft | 6380-5101 | Socket sealing ring |
| 3ft | 6391-0181 | Torch ring |
| 3ft | 6482-1961 | Spring segment |
| 3ft | 6482-7301 | Spring segment |
| 3ft | 6587-6610 | Adjustment lock post |
| 3ft | 6863-3701 | Countershaft |
| 3ft | 6886-2273 | Main shaft |
| 3ft | 3886-3183 | Main shaft |
| 3ft | 7058-7620 | Shim |
| 3ft | 7058-7626 | Shim |
| 3ft | 7058-7630 | Shim |
| 3ft | 7292-5601 | Head wear ring |
| 3ft | 7305-5396 | Tapered bushing |
| 3ft | 7320-3201 | Main shaft sleeve |
| 3ft | 9439-5046 | Feed cone |
| 4ft | 1063-1877 | Feed hopper |
| 4ft | 1063-1898 | Feed hopper |
| 4ft | 1063-1903 | Feed hopper |
| 4ft | 1063-2661 | Bowl hopper |
| 4ft | 1063-2890 | Bowl hopper |
| 4ft | 1970-0710 | U-bolt |
| 4ft | 1970-1150 | U-bolt |
| 4ft | 1970-3830 | U-bolt |
| 4ft | 1970-3832 | U-bolt |
| 4ft | 2005-3652 | Bowl |
| 4ft | 2005-3653 | Bowl |
| 4ft | 2005-3988 | Bowl |
| 4ft | 2005-3989 | Bowl |
| 4ft | 2005-4330 | Bowl |
| 4ft | 2206-2090 | Countershaft bushing |
| 4ft | 2214-4481 | Inner eccentric bushing |
| 4ft | 2214-5601 | Outer eccentric bushing |
| 4ft | 2281-5100 | Adjustment cap |
| 4ft | 2281-5120 | Adjustment cap |
| 4ft | 2281-6515 | Adjustment cap |
| 4ft | 2618-2246 | Feed cone |
| 4ft | 2618-3190 | Feed cone |
| 4ft | 2618-3226 | Feed cone |
| 4ft | 2618-3232 | Feed cone |
| 4ft | 3378-2995 | Main frame |
| 4ft | 3680-4204 | Eccentric gear |
| 4ft | 3680-4903 | Pinion gear |
| 4ft | 3680-4905 | Pinion gear |
| 4ft | 3806-4055 | Arm guard |
| 4ft | 3806-4092 | Countershaft box guard |
| 4ft | 3806-4581 | Arm guard |
| 4ft | 4246-5994 | Head |
| 4ft | 4246-5997 | Head |
| 4ft | 4246-6003 | Head |
| 4ft | 4537-6128 | Countershaft box |
| 4ft | 4545-2731 | Spring housing |
| 4ft | 4703-4295 | Key |
| 4ft | 47037585 | Key |
| 4ft | 4829-8540 | Bowl liner |
| 4ft | 4829-8545 | Bowl liner |
| 4ft | 4829-8603 | Bowl liner |
| 4ft | 4829-8671 | Bowl liner |
| 4ft | 4830-0023 | Bowl liner |
| 4ft | 4830-0158 | Bowl liner |
| 4ft | 4830-0291 | Bowl liner |
| 4ft | 4830-0350 | Bowl liner |
| 4ft | 4830-1101 | Bowl liner |
| 4ft | 4830-1151 | Bowl liner |
| 4ft | 4851-5001 | Main frame liner |
| 4ft | 4851-5100 | Main frame liner |
| 4ft | 4872-5205 | Socket liner |
| 4ft | 5013-4101 | Mantle |
| 4ft | 5013-4201 | Mantle |
| 4ft | 5013-4300 | Mantle |
| 4ft | 5013-4801 | Mantle |
| 4ft | 5168-5701 | Main shaft nut |
| 4ft | 6187-5200 | Adjustment ring |
| 4ft | 6342-3501 | Pinion thrust washer |
| 4ft | 6358-5160 | Oil flinger |
| 4ft | 6358-8156 | Oil flinger housing |
| 4ft | 6360-1743 | Socket sealing ring |
| 4ft | 6360-5261 | Baffle ring |
| 4ft | 6391-3321 | Torch ring |
| 4ft | 6482-1725 | Spring segment |
| 4ft | 6587-7025 | Lock post |
| 4ft | 6875-0416 | Countershaft |
| 4ft | 6686-4304 | Main shaft |
| 4ft | 7058-7706 | Shim |
| 4ft | 7058-7711 | Shim |
| 4ft | 7058-7713 | Shim |
| 4ft | 7292-5650 | Head wear ring |
| 4ft | 7320-4200 | Main shaft sleeve |
| 4ft | 7320-4201 | Main shaft sleeve |
| 4ft | 7320-4331 | Main shaft sleeve |
| 4ft | 7381-4603 | Socket |
| 4ft | 9439-6020 | Feed cone assembly |
| 4ft | 9439-6027 | Feed cone assembly |
| 4ft | 9439-6029 | Feed cone assembly |
| 4ft | 9439-6521 | Feed cone assembly |
| 4ft | 9439-6690 | Hydraulic lock post |
| 4ft | 9439-7091 | Hydraulic adjustment ram |
| 4 1/4ft | 1028-6361 | Feed hopper |
| 4 1/4ft | 1063-1886 | Bowl hopper |
| 4 1/4ft | 1063-2890 | Bowl hopper |
| 4 1/4ft | 1936-7960 | Spring bolt |
| 4 1/4ft | 1970-0710 | U-bolt |
| 4 1/4ft | 1970-1150 | U-bolt |
| 4 1/4ft | 1970-3830 | U-bolt |
| 4 1/4ft | 1970-3832 | U-bolt |
| 4 1/4ft | 1970-5821 | U-bolt |
| 4 1/4ft | 2005-4776 | Bowl |
| 4 1/4ft | 2005-4778 | Bowl |
| 4 1/4ft | 2005-5006 | Bowl |
| 4 1/4ft | 2206-2090 | Countershaft bushing |
| 4 1/4ft | 2214-3930 | Inner eccentric bushing |
| 4 1/4ft | 2214-5885 | Outer eccentric bushing |
| 4 1/4ft | 2281-6291 | Adjustment cap |
| 4 1/4ft | 2618-3190 | Feed cone |
| 4 1/4ft | 2618-3201 | Feed cone |
| 4 1/4ft | 2618-3221 | Feed cone |
| 4 1/4ft | 3114-1201 | Eccentric |
| 4 1/4ft | 3680-5608 | Eccentric gear |
| 4 1/4ft | 3806-4092 | Countershaft box guard |
| 4 1/4ft | 4246-9002 | Head |
| 4 1/4ft | 4404-9932 | Head |
| 4 1/4ft | 4537-6128 | Countershaft box |
| 4 1/4ft | 4636-6064 | Clearing jack |
| 4 1/4ft | 4545-2731 | Spring housing |
| 4 1/4ft | 4701-0175 | Key |
| 4 1/4ft | 4701-5660 | Key |
| 4 1/4ft | 4703-4295 | Key |
| 4 1/4ft | 4703-7585 | Key |
| 4 1/4ft | 4830-1826 | Bowl liner |
| 4 1/4ft | 4830-2957 | Bowl liner |
| 4 1/4ft | 4830-2958 | Bowl liner |
| 4 1/4ft | 4830-4341 | Bowl liner |
| 4 1/4ft | 4830-4612 | Bowl liner |
| 4 1/4ft | 4851-6186 | Main frame liner |
| 4 1/4ft | 4872-6340 | Socket liner |
| 4 1/4ft | 5013-4451 | Mantle |
| 4 1/4ft | 5013-6001 | Mantle |
| 4 1/4ft | 5168-5161 | Main shaft nut |
| 4 1/4ft | 5435-0001 | Main frame pin |
| 4 1/4ft | 5598-4161 | Feed plate |
| 4 1/4ft | 5598-4581 | Feed plate |
| 4 1/4ft | 5598-5701 | Feed plate |
| 4 1/4ft | 5683-2175 | Locking key |
| 4 1/4ft | 5760-2301 | Upper step bearing plate |
| 4 1/4ft | 5760-2601 | Lower step bearing plate |
| 4 1/4ft | 5885-0065 | Bowl lock post |
| 4 1/4ft | 5923-9208 | Crusher sheave |
| 4 1/4ft | 6187-5589 | Adjustment ring |
| 4 1/4ft | 6187-5590 | Adjustment ring |
| 4 1/4ft | 6342-3501 | Pinion thrust washer |
| 4 1/4ft | 6358-5160 | Oil flinger |
| 4 1/4ft | 6358-8156 | Flinger housing |
| 4 1/4ft | 6360-4161 | Socket sealing ring |
| 4 1/4ft | 6360-4163 | Socket sealing ring |
| 4 1/4ft | 6360-1210 | Socket sealing ring |
| 4 1/4ft | 6360-4601 | Head seal ring |
| 4 1/4ft | 6391-3321 | Torch ring |
| 4 1/4ft | 6482-2351 | Lower spring segment |
| 4 1/4ft | 6482-2352 | Lower spring segment |
| 4 1/4ft | 6482-7961 | Upper spring segment |
| 4 1/4ft | 6482-7963 | Upper spring segment |
| 4 1/4ft | 6587-7025 | Adjustment lock post |
| 4 1/4ft | 6875-0416 | Countershaft |
| 4 1/4ft | 6875-0681 | Countershaft |
| 4 1/4ft | 6886-5196 | Main shaft |
| 4 1/4ft | 6886-4350 | Main shaft |
| 4 1/4ft | 7058-8501 | Shim |
| 4 1/4ft | 7058-8751 | Shim |
| 4 1/4ft | 7058-8505 | Shim |
| 4 1/4ft | 7320-4202 | Main shaft sleeve |
| 4 1/4ft | 7320-4331 | Main shaft sleeve |
| 4 1/4ft | 7381-7004 | Socket |
| 4 1/4ft | 7381-7012 | Socket |
| 4 1/4ft | 7381-7016 | Socket |
| 4 1/4ft | 9439-6522 | Feed cone |
| 4 1/4ft | 9439-6690 | Hydraulic lock post |
| 4 1/4ft | 9439-7012 | Feed cone |
| 4 1/4ft | 9439-7014 | Feed cone |
| 5 1/2ft | 1063-4791 | Feed hopper |
| 5 1/2ft | 1063-4826 | Feed hopper |
| 5 1/2ft | 1063-5550 | Bowl hopper |
| 5 1/2ft | 1063-6121 | Bowl hopper |
| 5 1/2ft | 1940-3500 | Spring bolt |
| 5 1/2ft | 1940-3584 | Spring bolt |
| 5 1/2ft | 1970-7040 | U-bolt |
| 5 1/2ft | 1970-7871 | U-bolt |
| 5 1/2ft | 2005-5791 | Bowl |
| 5 1/2ft | 2005-5792 | Bowl |
| 5 1/2ft | 2005-7026 | Bowl |
| 5 1/2ft | 2005-7027 | Bowl |
| 5 1/2ft | 2206-5840 | Countershaft housing |
| 5 1/2ft | 2213-4800 | Bushing |
| 5 1/2ft | 2214-5706 | Inner eccentric bushing |
| 5 1/2ft | 2214-6161 | Outer eccentric bushing |
| 5 1/2ft | 2281-7691 | Adjustment cap |
| 5 1/2ft | 2281-7701 | Adjustment cap |
| 5 1/2ft | 2281-7963 | Adjustment cap |
| 5 1/2ft | 2618-5761 | Feed cone |
| 5 1/2ft | 2618-6001 | Feed cone |
| 5 1/2ft | 2618-6142 | Feed cone |
| 5 1/2ft | 2748-2476 | Locking nut cover |
| 5 1/2ft | 3041-7755 | Feed distributor |
| 5 1/2ft | 3114-2863 | Eccentric |
| 5 1/2ft | 3378-5157 | Main frame |
| 5 1/2ft | 3682-9752 | Pinion gear |
| 5 1/2ft | 3683-0807 | Eccentric gear |
| 5 1/2ft | 3806-7381 | Arm guard |
| 5 1/2ft | 3806-8501 | Countershaft box guard |
| 5 1/2ft | 4247-2035 | Head |
| 5 1/2ft | 4247-2040 | Head |
| 5 1/2ft | 4247-2041 | Head |
| 5 1/2ft | 4537-6723 | Countershaft box |
| 5 1/2ft | 4545-4621 | Spring housing |
| 5 1/2ft | 4700-8121 | Key |
| 5 1/2ft | 4700-8625 | Key |
| 5 1/2ft | 4701-2821 | Key |
| 5 1/2ft | 4701-5655 | Key |
| 5 1/2ft | 4703-4295 | Key |
| 5 1/2ft | 4703-8525 | Key |
| 5 1/2ft | 4830-6501 | Bowl liner |
| 5 1/2ft | 4830-6638 | Bowl liner |
| 5 1/2ft | 4830-6771 | Bowl liner |
| 5 1/2ft | 4830-6871 | Bowl liner |
| 5 1/2ft | 4851-6306 | Main frame liner |
| 5 1/2ft | 4851-7321 | Main frame liner |
| 5 1/2ft | 5013-6801 | Main shaft sleeve |
| 5 1/2ft | 5013-7001 | Mantle |
| 5 1/2ft | 5149-2502 | Spring bolt nut |
| 5 1/2ft | 5168-6781 | Main shaft nut |
| 5 1/2ft | 5425-9655 | Pin |
| 5 1/2ft | 5426-8435 | Pin |
| 5 1/2ft | 5433-3421 | Pin |
| 5 1/2ft | 5434-4850 | Pin |
| 5 1/2ft | 5435-2100 | Main frame pin |
| 5 1/2ft | 5598-6261 | Feed plate |
| 5 1/2ft | 5598-7101 | Feed plate |
| 5 1/2ft | 5683-1725 | Locking key |
| 5 1/2ft | 5760-3501 | Lower step bearing plate |
| 5 1/2ft | 5760-5011 | Upper step bearing plate |
| 5 1/2ft | 5885-0019 | Lock post |
| 5 1/2ft | 5923-9126 | Crusher sheave |
| 5 1/2ft | 5923-9206 | Crusher sheave |
| 5 1/2ft | 6187-6302 | Adjustment ring |
| 5 1/2ft | 6187-6303 | Adjustment ring |
| 5 1/2ft | 6358-5940 | Oil flinger |
| 5 1/2ft | 6358-9201 | Oil flinger |
| 5 1/2ft | 6360-9010 | Oil retainer ring |
| 5 1/2ft | 6961-2302 | Baffle ring |
| 5 1/2ft | 6380-6801 | Socket sealing ring |
| 5 1/2ft | 6482-6551 | Lower spring segment |
| 5 1/2ft | 6875-3762 | Countershaft |
| 5 1/2ft | 6886-5800 | Main shaft |
| 5 1/2ft | 6886-6286 | Main shaft |
| 5 1/2ft | 7058-8876 | Shim |
| 5 1/2ft | 7058-8880 | Shim |
| 5 1/2ft | 7058-9001 | Shim |
| 5 1/2ft | 7320-4661 | Torch ring |
| 5 1/2ft | 7381-7206 | Socket |
| 5 1/2ft | 9439-8025 | Floating feed cone |
| 5 1/2ft | 9439-8026 | Floating feed cone |
| 5 1/2ft | 9439-8078 | Ram |
| 5 1/2ft | 9439-8080 | Bowl lock |
| 5 1/2ft | 9439-8257 | Hydraulic lock post |
| 5 1/2ft | 2005-6280 | Bowl |
| 5 1/2ft | 2005-6282 | Bowl |
| 5 1/2ft | 2281-7691 | Adjustment cap |
| 5 1/2ft | 2281-7701 | Adjustment cap |
| 5 1/2ft | 2281-7963 | Adjustment cap |
| 5 1/2ft | 2681-5521 | Feed cone |
| 5 1/2ft | 4247-2039 | Head |
| 5 1/2ft | 4247-2042 | Head |
| 5 1/2ft | 4830-5415 | Bowl liner |
| 5 1/2ft | 4830-5421 | Bowl liner |
| 5 1/2ft | 4830-5556 | Bowl liner |
| 5 1/2ft | 4830-6331 | Bowl liner |
| 5 1/2ft | 5013-7401 | Mantle |
| 5 1/2ft | 5013-7601 | Mantle |
| 5 1/2ft | 6391-8355 | Adjustment cap |
| 5 1/2ft | 7320-6600 | Main shaft sleeve |
| 5 1/2ft | 9439-8035 | Floating feed cone |
| 7ft | 1063-6471 | Feed hopper |
| 7ft | 1063-8781 | Bowl hopper |
| 7ft | 1970-7871 | U-bolt |
| 7ft | 2005-8831 | Bowl |
| 7ft | 2005-9361 | Bowl |
| 7ft | 2206-8500 | Countershaft bushing |
| 7ft | 2214-0636 | Bushing |
| 7ft | 2214-6721 | Inner eccentric bushing |
| 7ft | 2214-7561 | Outer eccentric bushing |
| 7ft | 2281-8910 | Adjustment cap |
| 7ft | 2281-8970 | Adjustment cap |
| 7ft | 2302-7027 | Main frame cap |
| 7ft | 2470-9500 | Countershaft box guard |
| 7ft | 2618-8161 | Feed cone |
| 7ft | 2618-8221 | Feed cone |
| 7ft | 2748-4501 | Locking nut cover |
| 7ft | 3014-8357 | Feed distributor |
| 7ft | 3114-4262 | Eccentric |
| 7ft | 3682-7652 | Pinion gear |
| 7ft | 3682-9230 | Eccentric gear |
| 7ft | 3806-9061 | Countershaft box guard |
| 7ft | 3806-9502 | Arm guard |
| 7ft | 4247-5200 | Head |
| 7ft | 4537-7927 | Countershaft box |
| 7ft | 4545-6511 | Spring housing |
| 7ft | 4700-8651 | Key |
| 7ft | 4701-2845 | Key |
| 7ft | 4701-5680 | Key |
| 7ft | 4703-8995 | Key |
| 7ft | 4705-7175 | Key |
| 7ft | 4705-7303 | Key |
| 7ft | 4830-7378 | Bowl liner |
| 7ft | 4830-7379 | Bowl liner |
| 7ft | 4830-7581 | Bowl liner |
| 7ft | 4830-7583 | Bowl liner |
| 7ft | 4830-8400 | Bowl liner |
| 7ft | 4830-8494 | Bowl liner |
| 7ft | 4851-9281 | Main frame liner |
| 7ft | 4851-9410 | Seat liner |
| 7ft | 4851-9501 | Main frame liner |
| 7ft | 4872-8520 | Socket liner |
| 7ft | 5013-9001 | Mantle |
| 7ft | 5013-9203 | Mantle |
| 7ft | 5013-9268 | Mantle |
| 7ft | 5013-9276 | Mantle |
| 7ft | 5426-9100 | Main frame pin |
| 7ft | 5434-4970 | Pin |
| 7ft | 5435-2751 | Main frame pin |
| 7ft | 5598-8781 | Feed plate |
| 7ft | 5760-7401 | Lower step bearing plate |
| 7ft | 5760-8650 | Upper step bearing plate |
| 7ft | 5885-0017 | Bowl lock post |
| 7ft | 5885-0018 | Lock post |
| 7ft | 5923-2260 | Sheave |
| 7ft | 5923-9232 | Sheave |
| 7ft | 5923-9262 | Sheave |
| 7ft | 6187-9501 | Adjustment ring |
| 7ft | 6187-9500 | Adjustment ring |
| 7ft | 6273-1601 | Locking collar |
| 7ft | 6273-7151 | Locking nut |
| 7ft | 6291-2500 | Wear ring |
| 7ft | 6342-5501 | Pinion thrust washer |
| 7ft | 6358-7662 | Oil flinger |
| 7ft | 6358-9421 | Oil flinger housing |
| 7ft | 6361-7151 | Baffle ring |
| 7ft | 6380-9190 | Socket sealing ring |
| 7ft | 6466-9810 | Seat liner segment |
| 7ft | 6482-6311 | Lower spring segment |
| 7ft | 6876-1342 | Countershaft |
| 7ft | 6886-7889 | Main shaft |
| 7ft | 7058-9802 | Step bearing shim |
| 7ft | 7058-9805 | Step bearing shim |
| 7ft | 7292-7601 | Head wear ring |
| 7ft | 7303-9875 | Bushing |
| 7ft | 7305-1925 | Sleeve |
| 7ft | 7381-9576 | Socket |
| 7ft | 8030-2725 | Step bearing plate |
| 7ft | 8642-8350 | counterweight |
| 7ft | 9439-9018 | Floating feed cone |
| 7ft | 9439-9019 | Floating feed cone |
| 7ft | 9439-9142 | Bowl adjustment ram |
| 7ft | 9439-9358 | Lock post assembly |
| 7ft | 9450-4418 | Clearing jack assembly |
| 7ft | 1063-7927 | Feed hopper |
| 7ft | 1063-8781 | Bowl hopper |
| 7ft | 1970-0710 | U-bolt |
| 7ft | 2005-8833 | Bowl |
| 7ft | 2005-9335 | Bowl |
| 7ft | 2005-9345 | Bowl |
| 7ft | 2206-8500 | Countershaft bushing |
| 7ft | 2214-0636 | Bushing |
| 7ft | 2214-6721 | Inner eccentric bushing |
| 7ft | 2214-7564 | Outer eccentric bushing |
| 7ft | 2281-8977 | Adjustment cap |
| 7ft | 2618-8221 | Feed cone |
| 7ft | 3114-4262 | Eccentric |
| 7ft | 3378-9519 | Main frame |
| 7ft | 3378-9526 | Main frame |
| 7ft | 3682-7652 | Pinion |
| 7ft | 3682-9237 | Eccentric gear |
| 7ft | 3806-9061 | Countershaft box guard |
| 7ft | 3806-9502 | Arm guard |
| 7ft | 4537-7927 | Countershaft box |
| 7ft | 4700-8650 | Key |
| 7ft | 4701-2845 | Key |
| 7ft | 4701-5680 | Key |
| 7ft | 4705-7175 | Socket |
| 7ft | 4705-7303 | Key |
| 7ft | 4851-9282 | Main frame liner |
| 7ft | 4851-9401 | Seat liner |
| 7ft | 4851-9501 | Main frame liner |
| 7ft | 4872-8520 | Socket liner |
| 7ft | 5168-7386 | Main shaft nut |
| 7ft | 5426-7175 | Pin |
| 7ft | 5426-9100 | Main frame pin |
| 7ft | 5923-9360 | Sheave |
| 7ft | 6187-9512 | Adjustment ring |
| 7ft | 6319-2500 | Wear ring |
| 7ft | 6342-5501 | Pinion thrust washer |
| 7ft | 6358-7662 | Oil flinger |
| 7ft | 6358-9421 | Flinger housing |
| 7ft | 6361-7351 | Baffle ring |
| 7ft | 6391-5481 | Torch ring |
| 7ft | 6466-9810 | Seat liner segment |
| 7ft | 6482-6311 | Lower spring segment |
| 7ft | 6876-1325 | Countershaft |
| 7ft | 6886-8541 | Main shaft |
| 7ft | 7303-9875 | Bushing |
| 7ft | 7320-8350 | Main shaft sleeve |
| 7ft | 7381-9583 | Socket |
| 7ft | 8642-8850 | Counterweight |
| 7ft | 9439-9018 | Floating feed cone |
| 7ft | 9439-9019 | Floating feed cone |
| 7ft | 9439-9193 | Hydraulic lock post |
| 7ft | 9439-9752 | Bowl adjustment ram |
| 7ft | 9450-4418 | Clearing jack |
| 7ft | 1063-6375 | Feed hopper |
| 7ft | 1063-6471 | Feed hopper |
| 7ft | 1063-8184 | Bowl hopper |
| 7ft | 1063-8501 | Bowl hopper |
| 7ft | 2005-8605 | Bowl |
| 7ft | 2005-9276 | Bowl |
| 7ft | 2005-9359 | Bowl |
| 7ft | 2005-9385 | Bowl |
| 7ft | 2206-8500 | Countershaft bushing |
| 7ft | 2214-0636 | Bushing |
| 7ft | 2214-6721 | Inner eccentric bushing |
| 7ft | 2214-7561 | Outer eccentric bushing |
| 7ft | 2281-8910 | Adjustment cap |
| 7ft | 2281-8915 | Adjustment cap |
| 7ft | 2281-8945 | Adjustment cap |
| 7ft | 2281-8950 | Adjustment cap |
| 7ft | 2618-7681 | Feed cone |
| 7ft | 2618-7921 | Feed cone |
| 7ft | 2618-8161 | Feed cone |
| 7ft | 2618-8221 | Feed cone |
| 7ft | 2748-4501 | Locking nut cover |
| 7ft | 3041-8357 | Feed distributor |
| 7ft | 3114-4262 | Eccentric |
| 7ft | 3378-6711 | Main frame |
| 7ft | 3682-7652 | Pinion |
| 7ft | 3682-9233 | Gear |
| 7ft | 3682-9229 | Gear |
| 7ft | 3800-7665 | Guard |
| 7ft | 3800-7670 | Guard |
| 7ft | 3806-8781 | Arm guard |
| 7ft | 3806-9061 | Countershaft box guard |
| 7ft | 4247-5045 | Head |
| 7ft | 4247-5049 | Head |
| 7ft | 4247-5097 | Head |
| 7ft | 4247-5139 | Head |
| 7ft | 4537-7443 | Countershaft box |
| 7ft | 4545-6511 | Spring housing |
| 7ft | 4700-8650 | Key |
| 7ft | 4700-8651 | Key |
| 7ft | 4701-2845 | Key |
| 7ft | 4701-5680 | Key |
| 7ft | 4703-4295 | Key |
| 7ft | 4703-8995 | Key |
| 7ft | 4705-7157 | Key |
| 7ft | 4830-7378 | Bowl liner |
| 7ft | 4830-7379 | Bowl liner |
| 7ft | 4830-7581 | Bowl liner |
| 7ft | 4830-7583 | Bowl liner |
| 7ft | 4830-8400 | Bowl liner |
| 7ft | 4830-8494 | Bowl liner |
| 7ft | 4830-8556 | Bowl liner |
| 7ft | 4830-8846 | Bowl liner |
| 7ft | 4830-9472 | Bowl liner |
| 7ft | 4830-8068 | Bowl liner |
| 7ft | 4851-7611 | Main frame liner |
| 7ft | 4851-8481 | Main frame liner |
| 7ft | 4851-9320 | Seat liner |
| 7ft | 4851-9455 | Seat liner |
| 7ft | 4872-8485 | Socket liner |
| 7ft | 4872-8520 | Socket liner |
| 7ft | 4952-0001 | Bowl lock |
| 7ft | 5013-8101 | Upper mantle |
| 7ft | 5013-8201 | Upper mantle |
| 7ft | 5013-8401 | Lower mantle |
| 7ft | 5013-8601 | Lower mantle |
| 7ft | 5013-8801 | Lower mantle |
| 7ft | 5013-8901 | Lower mantle |
| 7ft | 5013-9001 | Mantle |
| 7ft | 5013-9203 | Mantle |
| 7ft | 5013-9268 | Mantle |
| 7ft | 5013-9276 | Mantle |
| 7ft | 5168-8131 | Main shaft nut |
| 7ft | 5434-0321 | Socket dowel |
| 7ft | 5434-6481 | Locking key |
| 7ft | 5598-7491 | Feed plate |
| 7ft | 5598-8781 | Feed plate |
| 7ft | 5760-7401 | Lower step bearing plate |
| 7ft | 5760-8650 | Upper step bearing plate |
| 7ft | 5923-9318 | Sheave |
| 7ft | 5923-9319 | Sheave |
| 7ft | 6187-7951 | Adjustment ring |
| 7ft | 6187-7952 | Adjustment ring |
| 7ft | 6237-1601 | Locking collar |
| 7ft | 6273-8201 | Locking nut |
| 7ft | 6358-7662 | Oil flinger |
| 7ft | 6358-9421 | Flinger housing |
| 7ft | 6361-7351 | Baffle ring |
| 7ft | 6386-8161 | Socket sealing ring |
| 7ft | 6380-9190 | Socket sealing ring |
| 7ft | 6391-5481 | Torch ring |
| 7ft | 6466-9667 | Seat liner |
| 7ft | 6482-5651 | Spring segment |
| 7ft | 6876-1324 | Countershaft |
| 7ft | 6886-7662 | Main shaft |
| 7ft | 6886-7663 | Main shaft |
| 7ft | 6886-7877 | Main shaft |
| 7ft | 6886-7943 | Main shaft |
| 7ft | 7058-9790 | Shim |
| 7ft | 7058-9802 | Shim |
| 7ft | 7058-9805 | Shim |
| 7ft | 7292-7601 | Head wear ring |
| 7ft | 7303-9875 | Bushing |
| 7ft | 7320-8011 | Main shaft sleeve |
| 7ft | 7381-9005 | Socket |
| 7ft | 7381-9007 | Socket |
| 7ft | 7381-9576 | Socket |
| 7ft | 7381-9583 | Socket |
| 7ft | 8642-8301 | Counterweight |
| 7ft | 8642-8350 | Counterweight |
| Guaranteed to fit, perform and long wear life | ||
Reviews
There are no reviews yet.
