What Is Apron Feede
Apron feeder is a mechanical type of feeder used in material handing operations to feed material to other equipment or extract material from storage stockpiles, bins or hoppers at a controlled rate of speed. They provides better feed control to prevent material feeding in downstream equipment from choking, absorb the shock of loading material directly onto the feeder with a shallow bed, and reclaim a variety of dry or wet materials of various sizes at a uniform rate.

How It Works

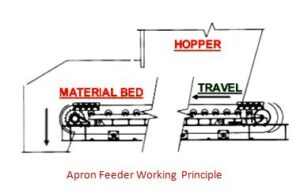

An apron feeder is usually installed under the opening at the discharge end of a hopper, which is to convey material from hopper to the delivery point at a controllable constant speed. It consists of a frame, undercarriage components, head shaft, tail shaft, feeder pan, transmission system and a motor. The undercarriage chain wraps around the head shaft and tail shaft, and the feeder pan are bolted to the strands of chain. The chain and feeder pan combination rides on undercarriage rollers. When the head shaft rotates, the material in the hopper is pulled out of the opening by the movement of the feeder pans, and it provides a material flow.

Why Powerups Heavy-Duty Apron Feeder
An apron feeder is usually installed under the opening at the discharge end of a hopper, which is to convey material from hopper to the delivery point at a controllable constant speed. It consists of a frame, undercarriage components, head shaft, tail shaft, feeder pan, transmission system and a motor. The undercarriage chain wraps around the head shaft and tail shaft, and the feeder pan are bolted to the strands of chain. The chain and feeder pan combination rides on undercarriage rollers. When the head shaft rotates, the material in the hopper is pulled out of the opening by the movement of the feeder pans, and it provides a material flow.

Feature & Benefits
√  Typically arranged below hoppers or stockpiles to ensure material flows consistently.
√  The sturdy and robust design for lasting performance
√  Large anti-friction spherical bearings on the head shaft for long life
√  Options available: customizable feedbox, discharge chute, spillage chute, etc.

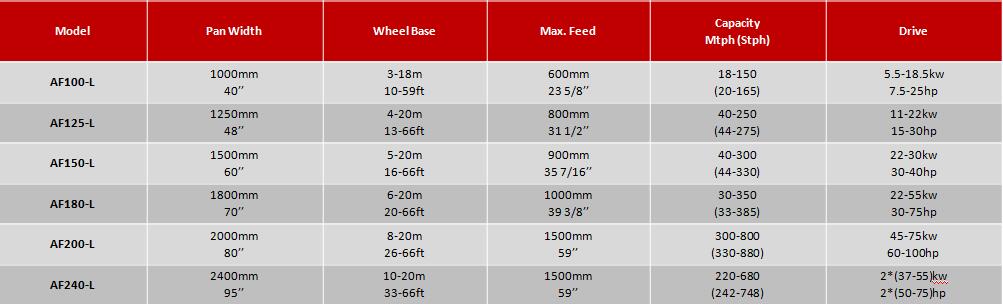

Technical Specification

Note: Technical parameters are subject to change without further notice

Reviews
Powerups AF series Heavy-duty Apron feeder is a legend to convey materials in mineral, aggregate construction and recycling industries, besides, we have been committed to equipment optimization, such as simple and safe operation of the machine, long wear life of wearing parts, and we are aiming to satisfy all my customers around the world.  As a trustworthy manufacturer, Powerups guarantee to source quality castings of parts and they are qualified by our quality control technician. The feeds are assembled and tested under the technical instruction by our experienced technicians so that each machine can deliver excellent performance.

At Powerups, we specialize in the sales and service to suit all of your crushing, screening, feeding, washing and classifying needs. If your company is interested in learning more about the jaw crusher, cone crusher, impact crusher, feeder, screen, etc and what they can do for you, reach out to us for a free consultation.
