Description

What Is Sand Washer
The sand (fine material) washer is used to wash, classify and dewater solids materials in one machine. It can remove impurities covering the surface of sand and gravel, and destroy the water vapor layer of the coated sand to facilitate dehydration and play a important role in sand washing. Sand washers are widely used by construction sand producers, mining companies and glass recycling plants.

How Sand Washer Works
Sand or other fine material feeds to the feed box of sand washer, and the coarse or heavier materials settle to the bottom of the box, while ultra-fine waste fractions are carried by the up-current of water to the surface and overflow the weirs. Heavier material that settles to the bottom is conveyed up an 18-degree slope toward the discharge end. As the material is conveyed toward the discharge end, the water begins to separate from the material. A channel in the washer box/tub is provided opposite the conveying side to allow water to drain from the solids and overflow the weirs.

Why Powerups Sand Washer

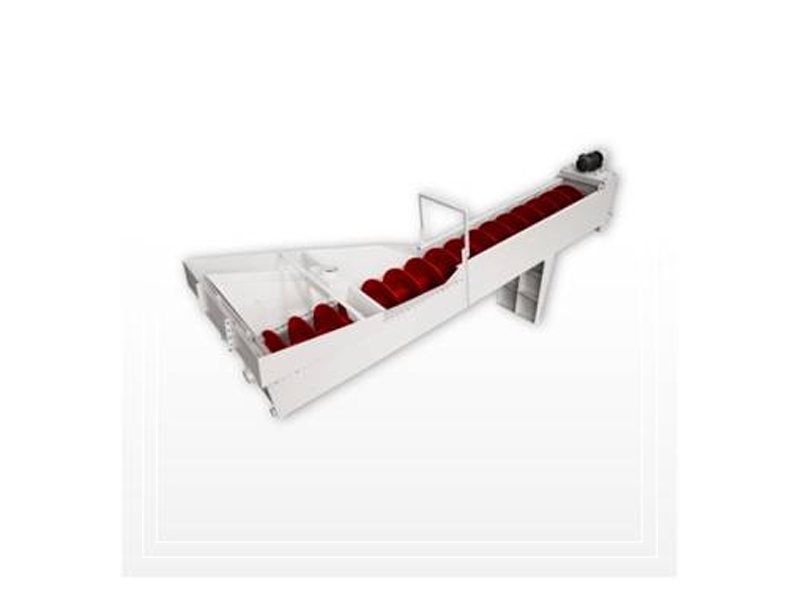

Powerups FW series sand screw washer is a multipurpose machine that washes, classifies and dewaters aggregate material. This is accomplished by the continuous rotation of the spiral conveyor shaft and the velocity of overflowing wastewater acting on the feed material. The rotating shaft causes the feed material to roll and tumble, which in turn provides particle-on-particle attrition. This action allows deleterious coatings to be removed from the solids and discharged with the overflowing wastewater. FW fine material washers are available in either single or double screw configurations, and selection is primarily a function of capacity requirements.

Features and Benefits
√  High-efficiency v-belt drive
√  Durable wear parts increase longevity
√  Heavy-duty tub design and construction

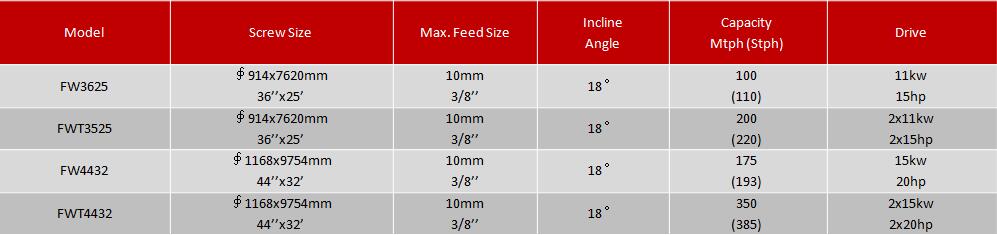

Technical Specification

Note: Technical parameters are subject to change without further notice

Reviews

Powerups FW series sand washer is widely used in mineral, aggregate and construction industries, besides, we have been committed to equipment optimization, such as simple and safe operation of the machine, long wear life of wearing parts, and we are aiming to satisfy all my customers around the world.  As a trustworthy manufacturer, Powerups guarantee to source quality components to make quality machinery. The sand washers are assembled and tested under the technical instruction by our experienced technicians so that every machine can deliver excellent performance.

At Powerups, we specialize in the sales and service to suit all of your crushing, screening, feeding, washing and classifying needs. If your company is interested in learning more about the jaw crusher, cone crusher, impact crusher, feeder, screen, etc and what they can do for you, reach out to us for a free consultation.
