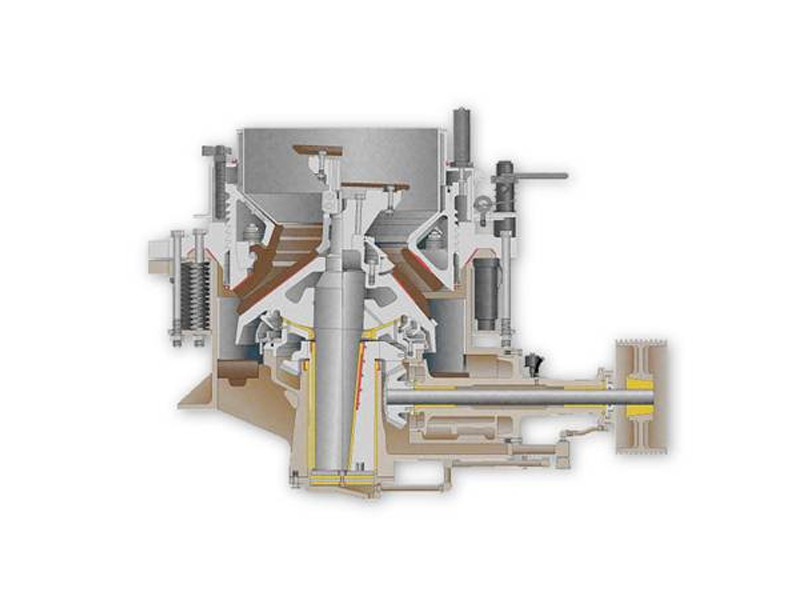

Premium Parts for Gyradisc® Cone Crusher
Powerups has been specializing in manufacturing premium quality aftermarket wear and replacement parts since 1990s, providing more competitive parts and service than typical parts suppliers in the world. In most of cases, we have the parts on shelf or castings in stock, which effectively shortens the lead time. We supply premium quality wear parts and spare parts such as upper liner, lower liner, eccentric, bushings, head, adjustment ring, mainframe, etc. to cover the models of Gyradisc® 36’’ cone crusher, Gyradisc® 48’’cone crusher, Gyradisc® 54’’ cone crusher, Gyradisc® 66’’ cone crusher and Gyradisc® 84’’cone crusher. In addition, Powerups offers full line of quality parts aftermarket to cover Symons® cone crusher, HP Series™ cone crusher, GP Series™ cone crusher, C Series™ jaw crusher, MP Series™ cone crusher, Omnicone Series® cone crusher , Sandvik® CH™ and CS™ cone crusher.
Cone Crusher Wear Parts & Spare Parts Manual
| Model | Part Number | Description |
| 36” | 1063-1852 | Feed hopper |
| 36” | 2005-3301 | Bowl |
| 36” | 2206-0762 | Countershaft bushing |
| 36” | 2206-3100 | Inner eccentric bushing |
| 36” | 2207-3501 | Outer eccentric bushing |
| 36” | 2618-1090 | Feed cone |
| 36” | 3113-7902 | Eccentric |
| 36” | 3378-2802 | Main frame |
| 36” | 3680-7353 | Pinion |
| 36” | 3680-9453 | Gear |
| 36” | 3806-3461 | Countershaft box guard |
| 36” | 3806-4021 | Arm guard |
| 36” | 4246-1005 | Head |
| 36” | 4246-1006 | Head |
| 36” | 4537-6003 | Countershaft box |
| 36” | 4700-8158 | Key |
| 36” | 4701-3100 | Key |
| 36” | 4703-6645 | Key |
| 36” | 4829-4700 | Upper liner |
| 36” | 4829-4706 | Upper liner |
| 36” | 4829-4707 | Upper liner |
| 36” | 4829-4734 | Upper liner |
| 36” | 4829-4735 | Upper liner |
| 36” | 4829-4736 | Upper liner |
| 36” | 4872-4100 | Socket liner |
| 36” | 5013-9901 | Lower liner |
| 36” | 5434-9341 | Pin |
| 36” | 5432-9541 | Dowel |
| 36” | 5920-7751 | Sheave |
| 36” | 5921-4906 | Sheave |
| 36” | 5921-4907 | Sheave |
| 36” | 6187-3721 | Adjustment ring |
| 36” | 6358-3921 | Oil flinger |
| 36” | 6358-7771 | Oil flinger housing |
| 36” | 6391-5531 | Torch ring |
| 36” | 6482-1691 | Spring segment |
| 36” | 6482-7301 | Spring segment |
| 36” | 6863-3425 | Countershaft |
| 36” | 6886-3307 | Main shaft |
| 36” | 7058-7620 | Shim |
| 36” | 7058-7626 | Shim |
| 36” | 7058-7630 | Shim |
| 36” | 7381-4303 | Socket |
| 48” | 2005-4051 | Bowl |
| 48” | 2207-2400 | Inner eccentric bushing |
| 48” | 2213-1501 | Bushing |
| 48” | 2214-5900 | Outer eccentric bushing |
| 48” | 2618-2189 | Feed cone |
| 48” | 3114-0910 | Eccentric |
| 48” | 3378-4102 | Main frame |
| 48” | 3680-4552 | Pinion |
| 48” | 3680-5606 | Gear |
| 48” | 3806-5701 | Arm guard |
| 48” | 4246-9490 | Head |
| 48” | 4246-9500 | Head |
| 48” | 4829-8470 | Upper liner |
| 48” | 4829-8471 | Upper liner |
| 48” | 4829-8475 | Upper liner |
| 48” | 4829-8480 | Upper liner |
| 48” | 4829-8481 | Upper liner |
| 48” | 4829-8482 | Upper liner |
| 48” | 4829-8491 | Upper liner |
| 48” | 4829-8492 | Upper liner |
| 48” | 4829-8493 | Upper liner |
| 48” | 4829-8494 | Upper liner |
| 48” | 4829-8500 | Upper liner |
| 48” | 4829-8501 | Upper liner |
| 48” | 4829-8502 | Upper liner |
| 48” | 4829-8503 | Upper liner |
| 48” | 4851-6161 | Main frame liner |
| 48” | 4872-6702 | Socket liner |
| 48” | 5014-0010 | Lower liner |
| 48” | 5014-0040 | Lower liner |
| 48” | 5014-0050 | Lower liner |
| 48” | 5433-5470 | Dowel |
| 48” | 5433-9502 | Pin |
| 48” | 5760-2601 | Step bearing plate |
| 48” | 5760-2640 | Step bearing plate |
| 48” | 5923-9127 | Sheave |
| 48” | 5923-9178 | Sheave |
| 48” | 6178-4000 | Adjustment ring |
| 48” | 6194-0060 | Feed hopper |
| 48” | 6273-1775 | Locking nut |
| 48” | 6391-5702 | Torch ring |
| 48” | 6428-2351 | Spring segment |
| 48” | 6886-4865 | Main shaft |
| 48” | 6886-4874 | Main shaft |
| 48” | 7058-8501 | Shim |
| 48” | 7058-8505 | Shim |
| 48” | 7058-8751 | Shim |
| 48” | 7381-6308 | Socket |
| 48” | 7381-6320 | Socket |
| 66” | 2005-7060 | Bowl |
| 66” | 2213-4800 | Bushing |
| 66” | 2214-5715 | Inner eccentric bushing |
| 66” | 2214-6161 | Outer eccentric bushing |
| 66” | 3041-8600 | Feed distributor |
| 66” | 3114-2926 | Eccentric |
| 66” | 3683-0807 | Gear |
| 66” | 3806-7381 | Arm guard |
| 66” | 4247-2501 | Head |
| 66” | 4830-7053 | Upper liner |
| 66” | 4830-7055 | Upper liner |
| 66” | 4851-7500 | Main frame liner |
| 66” | 4872-7502 | Socket liner |
| 66” | 5014-0350 | Lower liner extension |
| 66” | 5014-0360 | Lower liner |
| 66” | 5433-9154 | Dowel |
| 66” | 5435-2100 | Main frame pin |
| 66” | 5923-9076 | Sheave |
| 66” | 5923-9173 | Sheave |
| 66” | 6187-6302 | Adjustment ring |
| 66” | 6187-6303 | Adjustment ring |
| 66” | 6273-7001 | Locking nut |
| 66” | 6391-6983 | Torch ring |
| 66” | 6482-5651 | Spring segment |
| 66” | 6886-6264 | Main shaft |
| 66” | 6886-6303 | Main shaft |
| 66” | 6926-0146 | Shaft extension |
| 66” | 7381-8102 | Socket |
| 66” | 7381-8103 | Socket |
| 84” | 2005-9798 | Bowl |
| 84” | 2206-8500 | Countershaft bushing |
| 84” | 2214-5400 | Inner eccentric bushing |
| 84” | 2214-7500 | Outer eccentric bushing |
| 84” | 3114-4400 | Eccentric |
| 84” | 3378-9622 | Main frame |
| 84” | 3682-7652 | Pinion |
| 84” | 3682-9233 | Gear |
| 84” | 3806-9601 | Countershaft box guard |
| 84” | 3806-9502 | Arm guard |
| 84” | 4247-5305 | Head |
| 84” | 4247-5306 | Head |
| 84” | 4545-5454 | Spring housing |
| 84” | 4831-2490 | Upper liner |
| 84” | 4831-2491 | Upper liner |
| 84” | 4831-2492 | Upper liner |
| 84” | 4831-2500 | Upper liner |
| 84” | 4831-2501 | Upper liner |
| 84” | 4851-9320 | Seat liner |
| 84” | 4851-9455 | Seat liner |
| 84” | 4851-9595 | Main frame liner |
| 84” | 4872-9402 | Socket liner |
| 84” | 5014-3000 | Lower liner extension |
| 84” | 5014-3400 | Lower liner |
| 84” | 5014-3500 | Lower liner |
| 84” | 5435-1681 | Pin |
| 84” | 5435-2751 | Main frame pin |
| 84” | 5760-8990 | Upper step bearing plate |
| 84” | 5760-9000 | Lower step bearing plate |
| 84” | 5923-3170 | Sheave |
| 84” | 5923-9232 | Sheave |
| 84” | 6187-9585 | Adjustment ring |
| 84” | 6187-9586 | Adjustment ring |
| 84” | 6194-0037 | Head skirt |
| 84” | 6272-8899 | Locking nut |
| 84” | 6358-7662 | Oil flinger |
| 84” | 6358-9421 | Flinger housing |
| 84” | 6361-7265 | Seal ring |
| 84” | 6361-8071 | Baffle ring |
| 84” | 6391-6925 | Torch ring |
| 84” | 6391-8358 | Head wear ring |
| 84” | 6466-9625 | Seat liner |
| 84” | 6466-9667 | Seat liner |
| 84” | 6886-8567 | Main shaft |
| 84” | 6886-8587 | Main shaft |
| 84” | 6926-0123 | Shaft extension |
| 84” | 7058-9802 | Shim |
| 84” | 7058-9805 | Shim |
| 84” | 7303-9875 | Bushing |
| 84” | 7381-9701 | Socket |
| 84” | 7381-9704 | Socket |
| 84” | 8642-8427 | Counterweight |
| 84” | 9421-0122 | Clearing jack |
| Guaranteed to fit, perform and long wear life | ||
