Description

What Is Horizontal Shaft Impact Crusher
The word impact makes sense that in this particular type of crusher some impaction is being used for crushing of rocks. In normal types of crusher pressure is generated for the crushing of rocks. But, impact crushers involve an impact method. There is a hopper one side that takes the crushing materials into the machine. All material is carried only within a cage. This cage has an opening on the end, bottom and on the side. These opening help in escaping the pulverized material from the impact crusher.

How It Works
The shaft installed horizontally impact crushers create material reduction by providing a sudden impact force that causes the material to shatter along all the weakest fissures in the stone. They consist of blow bars that are fixed to the spinning rotor which is driven by the motor, and the rotor revolves at a high speed. Revolving blow bars in the rotor blow the materials. Then the materials will be thrown to the impact plates for secondary crushing. The materials will be shot back to the blow bars again. This process repeats until the materials are crushed to the required size and discharged through the discharging opening at the bottom of the horizontal shaft impact crusher. Adjusting the gap between the impact rack and rotor support, the size and shape of the final products can be changed

Why Powerups Horizontal Shaft Impact Crusher

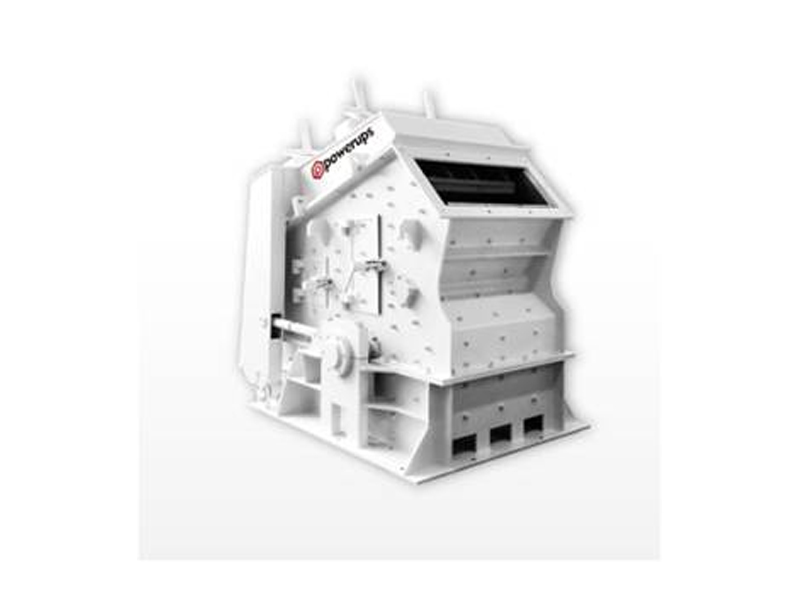

Powerups HSI series horizontal shaft impact crusher has been designed for the economic secondary crushing and, depending on its configurations, processing of either soft and medium-hard or hard rocks. They feature an excellent combination of heavy rotor, wear material and crushing chamber design. This combination has improved capacity, final product quality and reduced operating and wear parts cost. It’s capable of crushing majority kinds of ores such as feldspar, calcite, barite, fluorite, tombarthite, coke, basalt, concrete, limestone, etc, and the premium quality blow bar and breaker plates ensure the unbeatable performances in either primary, secondary or tertiary applications.

Feature & Benefits
√  High capacity and large crushing ratio
√  Hard rock crushing, energy efficient
√ Premium quality blow bars with high chrome
√ Good wear resistance
√ Hydraulic frame open and curtain adjustment
√ Easy operation and maintenance

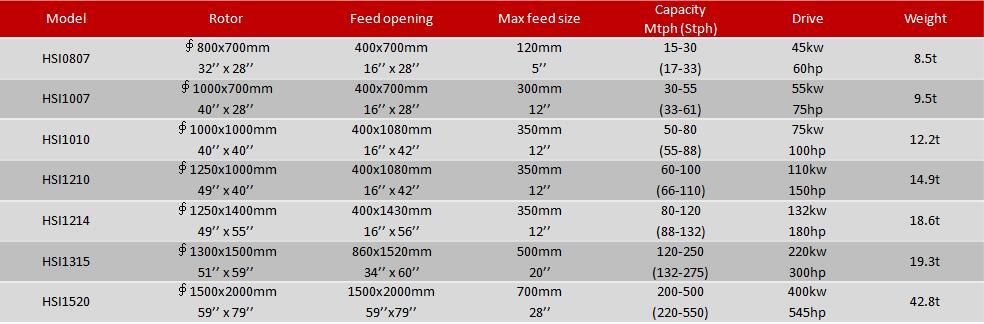

Technical Specification

Note: Technical parameters are subject to change without further notice

Reviews
Powerups horizontal shaft impact crushers are widely used in mineral processing, aggregate processing and construction recycling industries, besides, we have been committed to equipment optimization, such as simple and safe operation of the machine, long wear life of wearing parts, and we are aiming to satisfy all my customers worldwide.  As a trustworthy manufacturer, Powerups guarantee that every casting used to produce parts is tested and qualified by our quality control technician, and all the machines are assembled under the technical instruction by our experienced technicians so that each machine can achieve excellent performance. The HSI impact crusher comes with 12-month warranty after it’s initially operated at field, alternatively, 18-month warranty after the day of delivery from our workshop.

At Powerups, we specialize in the sales and service to suit all of your crushing, screening, feeding, washing and classifying needs. If your company is interested in learning more about the jaw crusher, cone crusher, impact crusher, feeder, screen, etc and what they can do for you, reach out to us for a free consultation.
