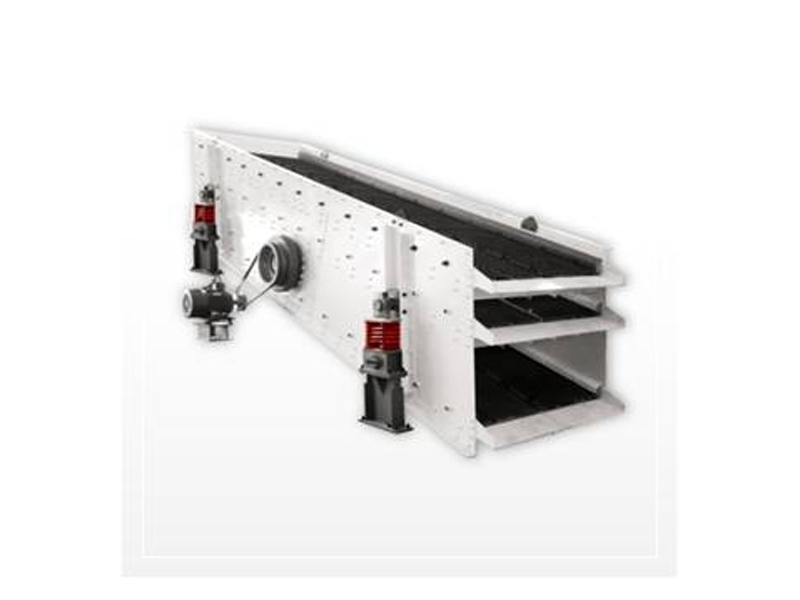

MEG Inclined Vibrating Screen

MEG Inclined Vibrating Screen

What Is Inclined Vibrating Screen
Inclined vibrating screens are the most important screening machines primarily utilized in the mineral processing industry. They are used to separate feeds containing solid and crushed ores, and are applicable to both perfectly wetted and dried operates at an inclined angle, traditionally varying between 10 and 25 degrees.

Description

How It Works
The frame of inclined vibrating screen is mounted on springs. The vibration is generated from unbalanced flywheel and eccentric shaft. A very erratic motion is developed when this wheel is rotated. You will find these simple screens in smaller operations and rock quarries where sizing isn’t as critical.

Why Powerups Inclined Vibrating Screen

Powerups MEG series inclined vibrating screens are designed to meet and exceed the demanding applications and specifications required of screening equipment, which provide a solution for all applications, including minerals, aggregates, etc. Each screen is built with maximum strength steel to withstand heavy loading and with the durability to provide you longer wear life. They are available in a range of sizes from 4’x12’ to 8’x20’, and capable of fitting into any existing structure of crushing plant.

The two bearings, circular throw inclined screen from Powerups utilizes a counterweight on a shaft to move the screen. The screen is mounted on springs and is powered by an electric motor. The inclination of this type of screen runs from 15 to 25 degree. The inclined screen is easily adjusted to improve overall performance and efficiency. The inclined vibrating screen can be lubricated by oil or grease as an option, and the screen media can be punch plate, fabricated steel wire or polyurethane.

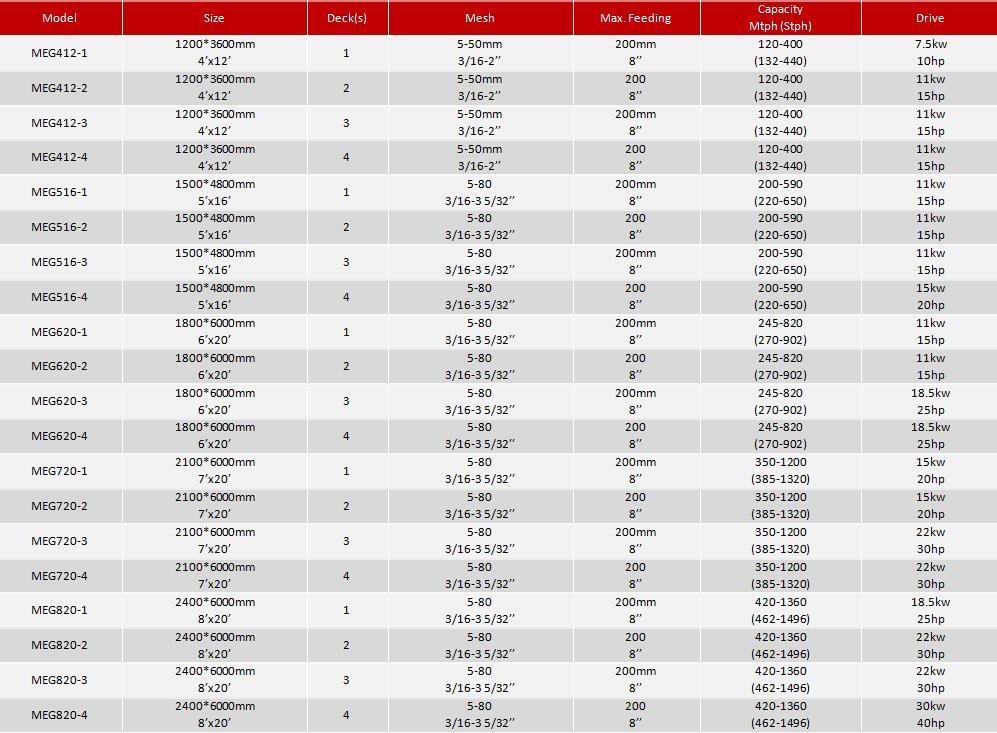

Technical Specification

Note: Technical parameters are subject to change without further notice

Reviews
Powerups MEG series inclined vibrating screen is widely used in mineral, aggregate construction and recycling industries, besides, we have been committed to equipment optimization, such as simple and safe operation of the machine, long wear life of wearing parts, and we are aiming to satisfy all my customers around the world.  As a trustworthy manufacturer, Powerups guarantee to source quality components to make quality machinery. The screens are assembled and tested under the technical instruction by our experienced technicians so that each machine can deliver excellent performance.

At Powerups, we specialize in the sales and service to suit all of your crushing, screening, feeding, washing and classifying needs. If your company is interested in learning more about the jaw crusher, cone crusher, impact crusher, feeder, screen, etc and what they can do for you, reach out to us for a free consultation.
