MP Series™ Cone Crusher Parts

MP Series™ Cone Crusher Parts

Powerups have been specializing in manufacturing premium quality aftermarket wear and replacement parts since 1990s, providing more competitive parts and service than typical parts suppliers in the world. In most of the cases, we have the parts on the shelf or castings in stock, which effectively shortens the lead time. We supply premium quality wear parts and spare parts such as a mantle, bowl liner, eccentric, bushings, counterweight, head, adjustment ring, mainframe, etc. to cover the models of MP800™ cone crusher, MP1000™ cone crusher and MP1250™ cone crusher. In addition, Powerups offers full line of quality parts aftermarket to cover Symons® cone crusher, Gyradisc® cone crusher, GP Series™ cone crusher, C Series™ jaw crusher, HP Series™ cone crusher, Omnicone Series® cone crusher , Sandvik® CH™ and CS™ cone crusher.

Description

 Premium Parts for MP Series™ Cone Crusher

Powerups has been specializing in manufacturing premium quality aftermarket wear and replacement parts since 1990s, providing more competitive parts and service than typical parts suppliers in the world. In most of cases, we have the parts on shelf or castings in stock, which effectively shortens the lead time. We supply premium quality wear parts and spare parts such as mantle, bowl liner, eccentric, bushings, counterweight, head, adjustment ring, mainframe, etc. to cover the models of MP800™ cone crusher, MP1000™ cone crusher and MP1250™ cone crusher. In addition, Powerups offers full line of quality parts aftermarket to cover Symons® cone crusher, Gyradisc® cone crusher, GP Series™ cone crusher, C Series™ jaw crusher, HP Series™ cone crusher, Omnicone Series® cone crusher , Sandvik® CH™ and CS™ cone crusher.

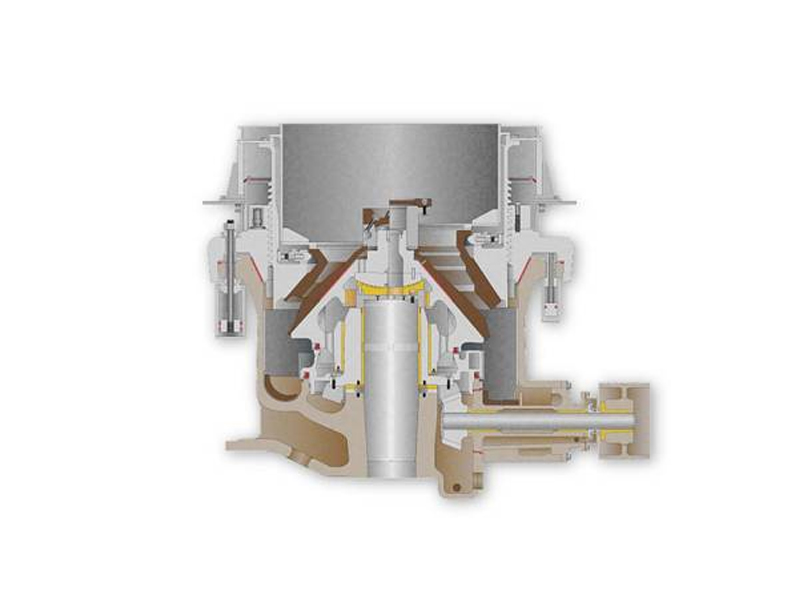

MP™ Cone Crusher Wear Parts & Spare Parts

1. Mainframe 2. U seal 3. Mainframe liner 4. Thrust washer
5. Arm guard 6. Mainshaft

1. Eccentric bushing 2. Gear 3. Thrust bearing 4. Eccentric
5. Counterweight

1. Bowl 2. Adjustment ring gear 3. Feed hopper
4. Adjustment ring cap

1. Head 2. Upper head bushing 3. Head ball 4. Head ball
5. T seal 6. Lower head bushing

1. Feed plate 2. Feed plate 3. Torch ring 4. Locking nut

1. Counter shaft box guard 2. Pinion 3. Counter shaft bushing
4. Counter shaft 5. Flinger housing 6. Oil flinger 7. Counter shaft box

1. Bowl adapter ring 2. Hardware 3. Mainframe seat liner

1. Bowl adapter ring 2. Hardware 3. Mainframe seat liner

Cone Crusher Parts Manual

Model Part Number Description
MP800™ 3378-6630 Main frame
MP800™ 6886-9835 Main shaft
MP800™ 4851-7583 Frame seat liner
MP800™ 5761-0200 Lower thrust bearing
MP800™ 5444-0227 Main frame pin
MP800™ 3806-0005 Arm guard
MP800™ 6187-9702 Clamp ring
MP800™ 6187-0051 Adjustment ring
MP800™ 3680-2120 Pinion
MP800™ 6863-6576 Countershaft
MP800™ 3806-9630 Box guard
MP800™ 6358-7664 Oil flinger
MP800™ 4537-6435 Countershaft box
MP800™ 2206-6796 Countershaft box bushing
MP800™ 3114-0006 Eccentric
MP800™ 2207-5485 Eccentric bushing
MP800™ 5761-0201 Upper thrust bearing
MP800™ 3680-2121 Gear
MP800™ 4872-4031 Socket liner
MP800™ 7381-7106 Socket
MP800™ 2214-7760 Lower head bushing
MP800™ 2214-7770 Upper head bushing
MP800™ 4247-2700 Head
MP800™ 5598-8665 Feed plate
MP800™ 6273-1725 Locking nut
MP800™ 4831-5251 Bowl liner
MP800™ 5014-3950 Mantle
MP800™ 6391-5737 Torch ring
MP800™ 2005-7553 Bowl
MP800™ 2281-9351 Adjustment cap
MP800™ 4418-0391 Hopper
MP800™ 2618-7502 Feed cone
MP1000™ 3378-9705 Main frame
MP1000™ 5760-5257 Thrust bearing
MP1000™ 3806-9780 Arm guard
MP1000™ 4851-9625 Main frame seat liner
MP1000™ 6187-9730 Adjustment ring
MP1000™ 6187-9701 Clamp ring
MP1000™ 3683-3001 Pinion
MP1000™ 2207-0708 Countershaft box bushing
MP1000™ 4537-8302 Countershaft box
MP1000™ 6863-7750 Countershaft
MP1000™ 3806-9700 Guard
MP1000™ 6280-7656 Oil flinger
MP1000™ 6359-4290 Flinger housing
MP1000™ 3806-7965 Guard
MP1000™ 3114-3704 Eccentric
MP1000™ 2207-5736 Eccentric bushing
MP1000™ 5760-5256 Eccentric bearing
MP1000™ 8642-8460 Counterweight
MP1000™ 4872-7626 Socket liner
MP1000™ 7381-8172 Socket
MP1000™ 4247-5241 Head
MP1000™ 2214-8525 Upper head bushing
MP1000™ 2214-8831 Lower head bushing
MP1000™ 5598-9398 Feed plate
MP1000™ 6273-1757 Locking nut
MP1000™ 4831-5556 Bowl liner
MP1000™ 5014-4053 Mantle
MP1000™ 6391-5735 Torch ring
MP1000™ 2281-9301 Adjustment cap
MP1000™ 2005-9610 Bowl
MP1000™ 4418-0221 Hopper
MP1250™ 5760-5260 Thrust bearing
MP1250™ 4851-9630 Main frame liner
MP1250™ 3806-9780 Arm guard
MP1250™ 5444-0240 Main frame pin
MP1250™ 6187-9701 Clamp ring
MP1250™ 2207-0708 Countershaft box bushing
MP1250™ 6863-7750 Countershaft
MP1250™ 4537-8302 Countershaft box
MP1250™ 3806-9700 Guard
MP1250™ 6280-7656 Oil flinger
MP1250™ 6359-4290 Flinger housing
MP1250™ 3806-7965 Guard
MP1250™ 2207-5736 Eccentric bushing
MP1250™ 5760-5258 Thrust bearing
MP1250™ 2214-8833 Lower head bushing
MP1250™ 2281-9301 Adjustment cap
MP1250™ 4418-0221 Hopper
Guaranteed to fit, perform and longer wear life
