Premium Parts for Omnicone® Cone Crusher
Powerups has been specializing in manufacturing premium quality aftermarket wear and replacement parts since 1990s, providing more competitive parts and service than typical parts suppliers in the world. In most of cases, we have the parts on shelf or castings in stock, which effectively shortens the lead time. We supply premium quality wear parts and spare parts of Omnicone® 1144, Omnicone® 1352 and Omnicone® 1560 cone crusher, such as mantle, eccentric, bushings, counterweight, head, adjustment ring, mainframe, etc. In addition, Powerups offers full line of quality parts aftermarket to cover Symons® cone crusher, Gyradisc® cone crusher, GP Series™ cone crusher, C Series™ jaw crusher, HP Series™ cone crusher, HP Series® cone crusher , Sandvik® CH™ and CS™ cone crusher.

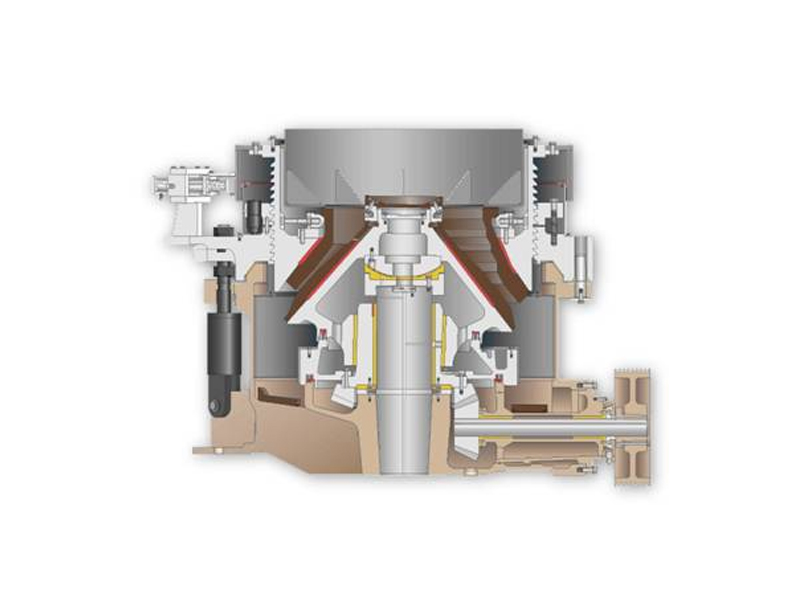

Omnicone® Cone Crusher Wear Parts & Spare Parts
1. Feed plate 2. Cover 3. Torch ring 4. Adjustment cap seal
5. Cover 6. Locking nut
1. Mainframe liner 2. Mainshaft 3. Seal 4. U seal
5. Thrust washer
1. Eccentric 2. Thrust bearing 3. Counterweight guard
4. Gear 5. Counterweight 6. Eccentric bushing
1. Adjustment ring 2. Pins 3. Dust collar seal 4. Dust collar
5. Mainframe seat liner
1. Lower head bushing 2. Head ball 3. T seal 4. Socket
5. Socket liner 6. Head
1. bolt 2. Feed plate 3. Screw 4. Torch ring
1. Countershaft box 2. Countershaft 3. Countershaft box guard
4. Oil flinger 5. Flinger housing 6. Countershaft bushing
Cone Crusher Parts Manual
| Model | Part Number | Description |
| Omnicone 1144 | 1330-1442 | Pin retainer |
| Omnicone 1144 | 1957-8080 | Square head bolt |
| Omnicone 1144 | 2206-0750 | Countershaft bushing |
| Omnicone 1144 | 2207-3300 | Eccentric bushing |
| Omnicone 1144 | 2207-3303 | Eccentric bushing |
| Omnicone 1144 | 2207-3308 | Eccentric bushing |
| Omnicone 1144 | 2214-5955 | Head bushing |
| Omnicone 1144 | 2214-5959 | Head bushing |
| Omnicone 1144 | 3113-6050 | Eccentric |
| Omnicone 1144 | 3113-6055 | Eccentric |
| Omnicone 1144 | 3571-4972 | O ring |
| Omnicone 1144 | 3586-4400 | Gasket |
| Omnicone 1144 | 3683-3865 | Gear |
| Omnicone 1144 | 3806-4093 | Countershaft box guard |
| Omnicone 1144 | 3806-4095 | Countershaft box guard |
| Omnicone 1144 | 3806-4107 | Arm guard |
| Omnicone 1144 | 4537-5401 | Countershaft box |
| Omnicone 1144 | 4851-4371 | Mainframe liner |
| Omnicone 1144 | 4851-4372 | Mainframe liner |
| Omnicone 1144 | 4851-4410 | Mainframe seat liner |
| Omnicone 1144 | 4872-2802 | Socket liner |
| Omnicone 1144 | 5013-2108 | Mantle |
| Omnicone 1144 | 5148-9349 | Spherical nut |
| Omnicone 1144 | 5426-8439 | Clevis pin |
| Omnicone 1144 | 5435-0025 | Mainframe pin |
| Omnicone 1144 | 5598-1160 | Feed plate |
| Omnicone 1144 | 5598-1165 | Feed plate |
| Omnicone 1144 | 5616-7913 | Counterweight cover |
| Omnicone 1144 | 5760-5122 | Head ball |
| Omnicone 1144 | 5760-5125 | Lower eccentric thrust bearing |
| Omnicone 1144 | 5760-5126 | upper eccentric thrust bearing |
| Omnicone 1144 | 5885-0091 | Duckworth adjust post |
| Omnicone 1144 | 6273-1680 | Locking nut |
| Omnicone 1144 | 6273-1681 | Locking nut |
| Omnicone 1144 | 6280-7420 | Oil flinger |
| Omnicone 1144 | 6308-3750 | Piston ring seal |
| Omnicone 1144 | 6351-8725 | Upper seal ring |
| Omnicone 1144 | 6351-8730 | Upper seal ring |
| Omnicone 1144 | 6351-8810 | Lower seal ring |
| Omnicone 1144 | 6351-8815 | Lower seal ring |
| Omnicone 1144 | 6351-9040 | Dust collar seal |
| Omnicone 1144 | 6351-9182 | Dust seal |
| Omnicone 1144 | 6391-5505 | Torch ring |
| Omnicone 1144 | 6391-7408 | Counterweight liner |
| Omnicone 1144 | 6391-7412 | Bowl adapter ring |
| Omnicone 1144 | 6391-7416 | Bowl adapter ring |
| Omnicone 1144 | 6391-7418 | Bowl adapter ring |
| Omnicone 1144 | 6466-6525 | Fulcrum bar |
| Omnicone 1144 | 6874-7201 | Countershaft |
| Omnicone 1144 | 6886-3403 | Mainshaft |
| Omnicone 1144 | 6886-4612 | Bowl liner |
| Omnicone 1144 | 7371-1455 | Socket |
| Omnicone 1144 | 7381-1454 | Socket |
| Omnicone 1144 | 7914-1214 | Accumulator |
| Omnicone 1144 | 8642-0470 | Weight segment |
| Omnicone 1144 | 8642-7685 | Counterweight |
| Omnicone 1144 | 8642-7686 | Counterweight |
| Omnicone 1144 | 8642-7900 | Counterweight |
| Omnicone 1144 | 8642-8060 | counterweight |
| Omnicone 1144 | 8642-0483 | Weight segment |
| Omnicone 1144 | 8642-0484 | Weight segment |
| Omnicone 1144 | 9427-0008 | Eccentric assembly |
| Omnicone 1144 | 9427-0089 | Tramp release cylinder |
| Omnicone 1352 | 1822-1187 | Guide bar |
| Omnicone 1352 | 1865-3803 | Spacer |
| Omnicone 1352 | 1878-0284 | Stop block |
| Omnicone 1352 | 1957-7660 | Wedge bolt |
| Omnicone 1352 | 1957-7675 | Wedge bolt |
| Omnicone 1352 | 1957-7700 | Wedge bolt |
| Omnicone 1352 | 2005-2790 | Bowl |
| Omnicone 1352 | 2206-2080 | Countershaft bushing |
| Omnicone 1352 | 2207-4063 | Eccentric bushing |
| Omnicone 1352 | 2207-4068 | Eccentric bushing |
| Omnicone 1352 | 2214-7102 | Head bushing |
| Omnicone 1352 | 2214-7103 | Head bushing |
| Omnicone 1352 | 2281-5140 | Adjustment cap assembly |
| Omnicone 1352 | 2702-0140 | Coupling adapter |
| Omnicone 1352 | 2702-0136 | Coupling adapter |
| Omnicone 1352 | 2745-8451 | Head plate |
| Omnicone 1352 | 2855-7545 | Tramp release cylinder |
| Omnicone 1352 | 3378-1814 | mainframe |
| Omnicone 1352 | 3658-9364 | Gasket |
| Omnicone 1352 | 3571-5373 | O ring |
| Omnicone 1352 | 3576-6400 | Gasket |
| Omnicone 1352 | 3585-7425 | Gasket |
| Omnicone 1352 | 3680-3300 | Gear |
| Omnicone 1352 | 3801-8170 | Counterweight guard |
| Omnicone 1352 | 3806-7400 | Arm guard |
| Omnicone 1352 | 4418-0174 | Hopper |
| Omnicone 1352 | 4537-5841 | Countershaft box |
| Omnicone 1352 | 4700-2700 | Key |
| Omnicone 1352 | 4700-7970 | Key |
| Omnicone 1352 | 4829-4820 | Bowl liner STD F |
| Omnicone 1352 | 4851-5301 | Mainframe liner |
| Omnicone 1352 | 4851-5302 | Mainframe liner |
| Omnicone 1352 | 4851-6272 | Mainframe seat liner |
| Omnicone 1352 | 4872-2900 | Socket liner |
| Omnicone 1352 | 4872-2903 | Socket liner |
| Omnicone 1352 | 4872-2904 | Socket liner |
| Omnicone 1352 | 5013-3991 | Mantle |
| Omnicone 1352 | 5013-3997 | Mantle STD |
| Omnicone 1352 | 5148-3199 | Spherical nut |
| Omnicone 1352 | 5149-5225 | Spherical nut |
| Omnicone 1352 | 5426-8498 | Clevis pin |
| Omnicone 1352 | 5435-0820 | Mainframe pin |
| Omnicone 1352 | 5598-1200 | Feed plate |
| Omnicone 1352 | 5598-1201 | Feed plate |
| Omnicone 1352 | 5616-7918 | Counterweight cover |
| Omnicone 1352 | 5752-9876 | Bowl adapter plate |
| Omnicone 1352 | 5752-9877 | Bowl adapter plate |
| Omnicone 1352 | 5752-9878 | Bowl adapter plate |
| Omnicone 1352 | 5760-5153 | Head ball |
| Omnicone 1352 | 5760-5155 | Upper thrust bearing |
| Omnicone 1352 | 5760-5157 | Head ball |
| Omnicone 1352 | 6194-0211 | Head skirt |
| Omnicone 1352 | 6273-1720 | Locking nut |
| Omnicone 1352 | 6273-1722 | Locking nut |
| Omnicone 1352 | 6308-4500 | Piston ring seal |
| Omnicone 1352 | 6340-5400 | Piston retainer |
| Omnicone 1352 | 6351-8830 | Upper seal ring |
| Omnicone 1352 | 6351-8832 | Upper seal ring |
| Omnicone 1352 | 6351-8943 | Lower seal ring |
| Omnicone 1352 | 6351-8947 | Lower seal ring |
| Omnicone 1352 | 6351-9158 | Seal |
| Omnicone 1352 | 6351-9770 | Adjustment cap seal |
| Omnicone 1352 | 6358-4495 | Flinger housing |
| Omnicone 1352 | 6358-5150 | Oil flinger |
| Omnicone 1352 | 6391-5607 | Torch ring |
| Omnicone 1352 | 6391-7490 | Counterweight liner |
| Omnicone 1352 | 6466-7148 | Fulcrum bar |
| Omnicone 1352 | 6874-9881 | Countershaft |
| Omnicone 1352 | 6874-9880 | Countershaft |
| Omnicone 1352 | 6886-3503 | Main shaft |
| Omnicone 1352 | 6886-3506 | Main shaft |
| Omnicone 1352 | 7381-4253 | Socket |
| Omnicone 1352 | 7381-4254 | Socket |
| Omnicone 1352 | 7381-4255 | Socket |
| Omnicone 1352 | 7058-9774 | Shim |
| Omnicone 1352 | 7058-9776 | Shim |
| Omnicone 1352 | 7058-9778 | Shim |
| Omnicone 1352 | 7058-9780 | Shim |
| Omnicone 1352 | 7462-0041 | Spindle |
| Omnicone 1352 | 7914-2720 | Accumulator |
| Omnicone 1352 | 8642-8126 | Counterweight |
| Omnicone 1352 | 9428-0065 | Clamping cylinder |
| Omnicone 1352 | 9428-0070 | Hopper assembly |
| Omnicone 1352 | 9428-0075 | Clamping cylinder |
| Omnicone 1352 | 9428-0077 | Bowl assembly |
| Omnicone 1352 | 9428-0078 | Bowl assembly |
| Omnicone 1352 | 9428-0079 | Bowl assembly |
| Omnicone 1352 | 9428-0082 | Tramp release cylinder |
| Omnicone 1352 | 9428-0097 | Feed plate assembly |
| Omnicone 1352 | 9428-0192 | Mainframe assembly |
| Omnicone 1560 | 1822-3050 | Guide bar |
| Omnicone 1560 | 1865-0326 | Block |
| Omnicone 1560 | 1957-8940 | Square head bolt |
| Omnicone 1560 | 1957-8985 | Square head bolt |
| Omnicone 1560 | 1957-9051 | Square head bolt |
| Omnicone 1560 | 2005-5053 | Bowl |
| Omnicone 1560 | 2005-5054 | Bowl |
| Omnicone 1560 | 2138-7781 | Retainer base |
| Omnicone 1560 | 2206-2091 | Countershaft bushing |
| Omnicone 1560 | 2207-4601 | Eccentric bushing |
| Omnicone 1560 | 2207-4799 | Eccentric bushing |
| Omnicone 1560 | 2207-4802 | Eccentric bushing |
| Omnicone 1560 | 2214-7343 | Head bushing |
| Omnicone 1560 | 2214-7347 | Head bushing |
| Omnicone 1560 | 2214-7348 | Head bushing |
| Omnicone 1560 | 2281-7210 | Adjustment cap |
| Omnicone 1560 | 2746-7415 | Head plate |
| Omnicone 1560 | 2746-7416 | Head plate |
| Omnicone 1560 | 2855-9092 | Release cylinder |
| Omnicone 1560 | 3113-8801 | Eccentric |
| Omnicone 1560 | 3113-8803 | Eccentric |
| Omnicone 1560 | 3378-4454 | Mainframe |
| Omnicone 1560 | 3571-6373 | O ring |
| Omnicone 1560 | 3586-5980 | Gasket |
| Omnicone 1560 | 3683-1203 | Pinion |
| Omnicone 1560 | 3683-1204 | Pinion |
| Omnicone 1560 | 3683-1205 | Pinion |
| Omnicone 1560 | 3683-1527 | Pinion |
| Omnicone 1560 | 3683-1530 | Gear |
| Omnicone 1560 | 3683-1535 | Gear |
| Omnicone 1560 | 3707-0800 | Hydraulic drive pinion |
| Omnicone 1560 | 3806-4110 | Countershaft box guard |
| Omnicone 1560 | 3806-7460 | Arm guard |
| Omnicone 1560 | 3806-7465 | Arm guard |
| Omnicone 1560 | 4246-4001 | Head |
| Omnicone 1560 | 4246-4012 | Head |
| Omnicone 1560 | 4537-6393 | Countershaft box |
| Omnicone 1560 | 4700-7975 | Sheave key |
| Omnicone 1560 | 4700-9505 | Oil flinger key |
| Omnicone 1560 | 4831-5160 | Bowl liner |
| Omnicone 1560 | 4851-6288 | Mainframe liner |
| Omnicone 1560 | 4851-6289 | Mainframe liner |
| Omnicone 1560 | 4851-6293 | Mainframe liner |
| Omnicone 1560 | 4851-6294 | Mainframe liner |
| Omnicone 1560 | 4851-6295 | Mainframe seat liner |
| Omnicone 1560 | 4872-6804 | Socket liner |
| Omnicone 1560 | 4872-6805 | Socket liner |
| Omnicone 1560 | 5013-6351 | Mantle STD |
| Omnicone 1560 | 5013-6367 | Mantle STD |
| Omnicone 1560 | 5148-6501 | Spherical nut |
| Omnicone 1560 | 5149-5300 | Spherical nut |
| Omnicone 1560 | 5426-8753 | Clevis pin |
| Omnicone 1560 | 5426-8757 | Clevis pin |
| Omnicone 1560 | 5435-1501 | Mainframe pin |
| Omnicone 1560 | 5598-5805 | Feed plate |
| Omnicone 1560 | 5598-5807 | Feed plate |
| Omnicone 1560 | 5616-7925 | Counterweight cover |
| Omnicone 1560 | 5760-5154 | Head bowl |
| Omnicone 1560 | 5760-5156 | Head ball |
| Omnicone 1560 | 5760-5166 | Eccentric lower thrust bearing |
| Omnicone 1560 | 5760-5171 | Eccentric upper thrust bearing |
| Omnicone 1560 | 5683-9400 | Lock plate |
| Omnicone 1560 | 6187-5592 | Clamping ring |
| Omnicone 1560 | 6187-6287 | Adjustment ring |
| Omnicone 1560 | 6194-0121 | Dust shell |
| Omnicone 1560 | 6194-0224 | Head skirt |
| Omnicone 1560 | 6273-1781 | Locking nut |
| Omnicone 1560 | 6343-7709 | Bowl adapter ring |
| Omnicone 1560 | 6343-7875 | Bowl adapter ring |
| Omnicone 1560 | 6351-7546 | Counterweight liner |
| Omnicone 1560 | 6351-8945 | Seal ring |
| Omnicone 1560 | 6351-8930 | Seal ring |
| Omnicone 1560 | 6351-8950 | Seal ring |
| Omnicone 1560 | 6351-8955 | Seal ring |
| Omnicone 1560 | 6351-9411 | Dust collar seal |
| Omnicone 1560 | 6351-9845 | Dust seal |
| Omnicone 1560 | 6358-5165 | Oil flinger |
| Omnicone 1560 | 6358-8085 | Flinger housing |
| Omnicone 1560 | 6361-8030 | Dust collar |
| Omnicone 1560 | 6391-5716 | Torch ring |
| Omnicone 1560 | 6391-5719 | Torch ring |
| Omnicone 1560 | 6391-7545 | Counterweight liner |
| Omnicone 1560 | 6391-7546 | Counterweight liner |
| Omnicone 1560 | 6872-2502 | Countershaft |
| Omnicone 1560 | 6875-2500 | Countershaft |
| Omnicone 1560 | 6875-2501 | Countershaft |
| Omnicone 1560 | 6886-5365 | Main shaft |
| Omnicone 1560 | 7058-9815 | Thrust bearing shim |
| Omnicone 1560 | 7058-9813 | Thrust bearing shim |
| Omnicone 1560 | 7058-9811 | Thrust bearing shim |
| Omnicone 1560 | 7381-1530 | Socket |
| Omnicone 1560 | 7381-7085 | Socket |
| Omnicone 1560 | 7381-7086 | Socket |
| Omnicone 1560 | 7634-0069 | Seal strip |
| Omnicone 1560 | 8634-2866 | Wedge |
| Omnicone 1560 | 8642-8335 | counterweight |
| Omnicone 1560 | 8642-8337 | counterweight |
| Omnicone 1560 | 9428-0065 | Clamping cylinder |
| Omnicone 1560 | 9429-0081 | Head assembly |
| Omnicone 1560 | 9429-0195 | Tramp release cylinder |
| Omnicone 1560 | 9429-0307 | Counter shaft assembly |
| Omnicone 1560 | 9429-0314 | Head assembly |
| Omnicone 1560 | 9429-0316 | Bow assembly |
| Guaranteed to fit, perform and longer wear life | ||
Reviews
There are no reviews yet.
