Description

What Is Jaw Crusher

Jaw Crushers are used to reduce the size of many different types of materials in many applications. They are designed to exceed the primary needs of customers in the mineral processing, aggregates and recycling industries. It’s consists of many parts such as eccentric shaft, bearings, flywheels, swing jaw (pitman), fixed jaw, toggle plate, jaw dies (jaw plates), etc. A jaw crusher uses compressive force for breaking materials.
This mechanical pressure is achieved by the tow jaws dies of the crusher, one of which is stationary and other is movable. These two vertical manganese jaw dies create a V-shape crushing chamber. Electrical motor drives transmission mechanism driven swing hanging around the shaft relative to the fixed jaw do periodic reciprocating motion, The swing jaw undergoes two types of motion: one is a swing motion toward the opposite chamber side called a stationary jaw die due to the action of a toggle plate, and the second is a vertical movement due to the rotation of the eccentric. These combine motions compress and push the material through the crushing chamber at a predetermined size.

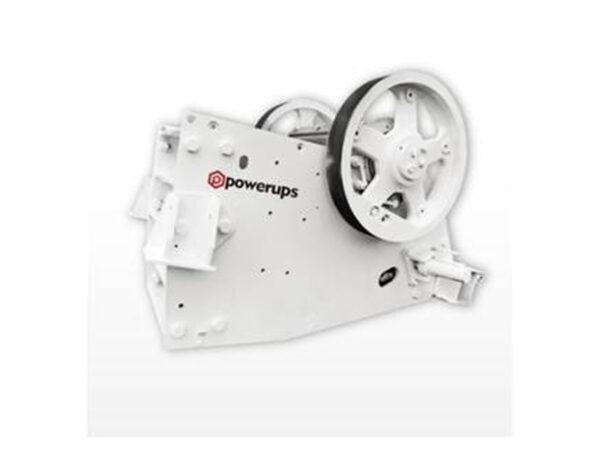

Why Powerups P-C Jaw Crusher

Powerups has been spending great efforts to decrease energy consumed in crushing leading to consideration of decreasing the weight of the pitman assembly of jaw crusher for easily crushed material. Its high performance C jaw crusher, shortened as P-C, is a modern type with optimized and developed design on structure, material selection, manufacture process and assembly, which is based on absorbing the cutting edge technology of jaw crusher worldwide and improved by our engineers. With the features of pinned and bolted, non-welded frame construction, and high-quality components. This design provides excellent fatigue strength even in toughest quarrying or mining applications.

P-C series jaw crusher is new sort of rock crusher with higher efficiency. They are the most productive and cost-efficient jaw crushers for any primary crushing application. They are able to crush all kinds of hard and abrasive rock and mineral ore. In past few years, Powerups engineers have been working to improve the wear life of jaw dies. Through material analysis and performance analysis, we have made jaw die have a longer service life. In addition, P-C series jaw crusher can be selectively equipped with automatic hydraulic control system, and it is extremely safer and easier to adjust the chamber in actual applications.

Features & Benefits

Note: Technical parameters are subject to change without further notice

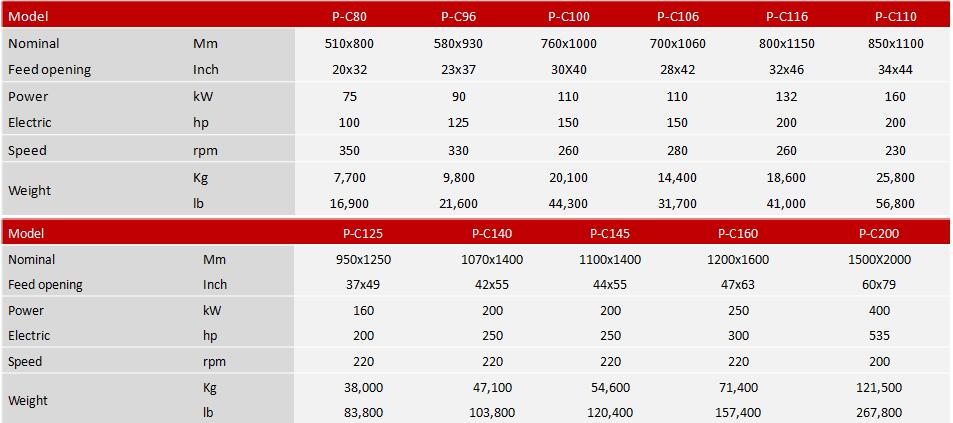

Technical Specification

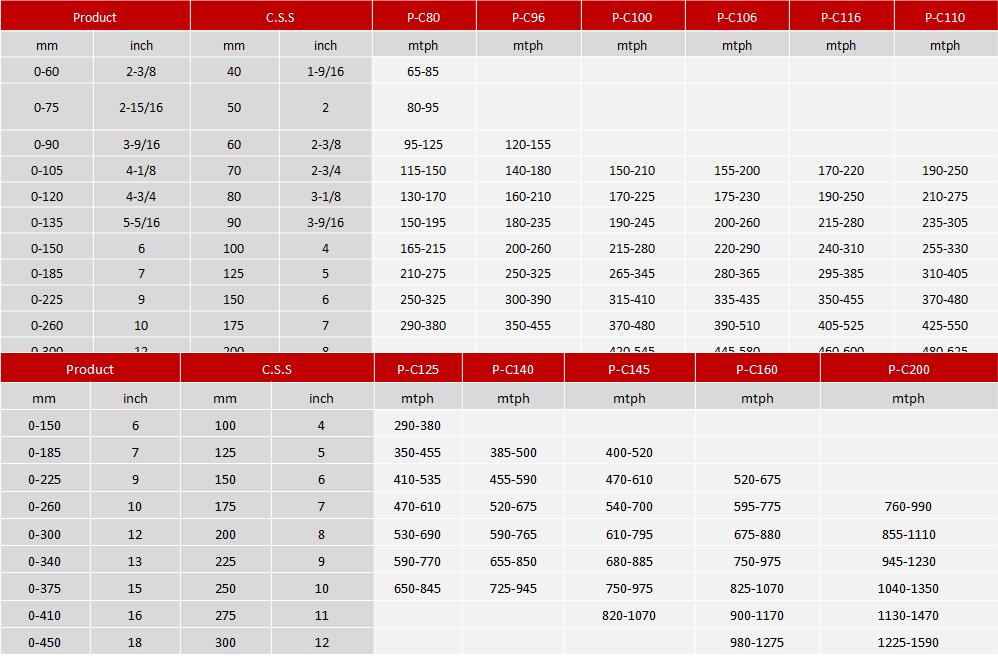

Production Distribution

Operation & Maintenance
1.  Preparation before starting
1.1. Check the lubrication of main bearings in right amount, toggle plate and pitman in right position
1.2. Check and confirm all the bolts are fastened
1.3. Check the counterweight in good condition and right position
1.4. The belts are well installed, and they are in good condition.
1.5. Correct the protecting devices if there are not in good condition.
1.6. Check whether there are any materials in the crushing groove and clear it.
1.7. Check whether the gasket is installed correctly or pressed tightly.
2. Start the crusher
2.1. Start the machine only after making sure that the machine and transmission part can work in good condition.
2.2. This machine should start with NO-Loading.
2.3. Stop the machine immediately if any uncommon fact occurs. Start the machine only after checking and correcting.
3. Operation
3.1. Start feeding after checking that the machine works well.
3.2. Feed the material uniformly into the machine, and avoid feeding material from one side only or feeding to overload.
3.3. Stop feeding before shutdown the machine. Shut the motor down after the crusher cavity is clear.
3.4. Stop the motor immediately if the crusher is blocked due to material clogging in the cavity
3.5. Jaw dies can be installed upside down once the lower half of jaw dies is not in good condition
3.6. Check all fixed parts before starting to use and tighten all the bolts and screws if they are loose.

Jaw Crusher Parts & Services



Powerups’ parts offering covers both jaw crusher wear parts and spare parts such as jaw dies, pitman, pitman assembly, eccentric shaft, bearings, wedges, etc. And they are all manufactured to improve the crushing performance and avoid unexpected downtime. In addition, Powerups is able to offer high quality wear parts and spare parts for the wide range of non-Powerups jaw crushers. These parts are designed using our OEM know-how and decades of experience both in minerals processing and aggregates production. The jaw crusher wear parts and spare parts from Powerups are guaranteed to fit, achieve peak performance and long wear life. Please check the parts manual, or ask more by filling the contact form with OEM part number to find out what we can do.

Reviews
P-C series jaw crusher is widely used in mineral processing, aggregate processing and construction recycling industries, besides, we have been committed to equipment optimization, such as simple and safe operation of the machine, long wear life of wearing parts, and we are aiming to satisfy all my customers worldwide.  As a trustworthy manufacturer, Powerups guarantee that every casting used to produce parts is tested and qualified by our quality control technician, and all the machines are assembled under the technical instruction by our experienced technicians so that each machine can achieve excellent performance. In addition to supplying machines with premium quality, our goal is to keep the price of our brand new jaw crusher being consistent with the price of OEM jaw crusher used for sale. The jaw crusher sold by Powerups comes with 12-month warranty after it’s initially operated at field, alternatively, 18-month warranty after the day of delivery from our workshop.

At Powerups, we specialize in the sales and service to suit all of your crushing, screening, feeding, washing and classifying needs. If your company is interested in learning more about the jaw crusher, cone crusher, impact crusher, feeder, screen, etc and what they can do for you, reach out to us for a free consultation.
