Description

What Is Vertical Shaft Impact Crusher
The word impact makes sense that in this particular type of crusher some impaction is being used for crushing of rocks. In normal types of crusher pressure is generated for the crushing of rocks. But, impact crushers involve an impact method. The first Vertical Shaft Impact Crusher was invented by Francis E. Agnew in 1920s. They are designed to be used in secondary, tertiary or quaternary stage crushing. The crushers are suitable for a wide range of applications including the production of high-quality manufactured sand, well-formed aggregates and industrial minerals. Crushers can also be used for shaping or removal of soft stone from aggregate.

How It Works

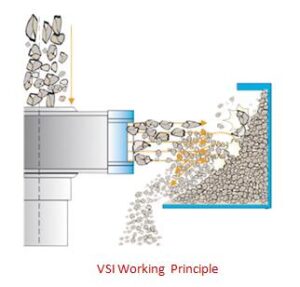

Vertical shaft impact crusher has a high speed rotor with wear resistant tips and a crushing chamber designed in such a way so that feed material drops through the feed tube onto the impeller table or enclosed rotor which, through centrifugal force, speed rotor throw the rocks against the crushing chamber.  The VSI crushers utilize velocity rather than surface force as the predominant force to break rock. This method of crushing is simple and economical to operate.

The shaft installed horizontally impact crushers create material reduction by providing a sudden impact force that causes the material to shatter along all the weakest fissures in the stone. They consist of blow bars that are fixed to thespinning rotor which is driven by the motor, and the rotor revolves at a high speed. Revolving blow bars in the rotor blow the materials. Then the materials will be thrown to the impact plates for secondary crushing. The materials will be shot back to the blow bars again. This process repeats until the materials are crushed to the required size and discharged through the discharging opening at the bottom of the horizontal shaft impact crusher. Adjusting the gap between the impact rack and rotor support, the size and shape of the final products can be changed.

Why Powerups Horizontal Shaft Impact Crusher

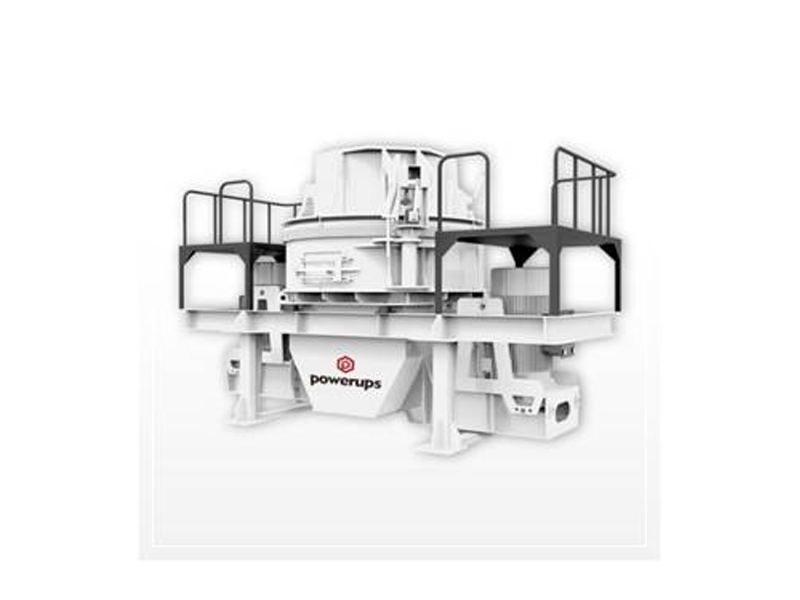

Powerups VSI series vertical shaft impact crushers are designed to produce fine material or medium-fine material, well formed aggregates and industrial minerals, which have the advantages of high performance delivery and lower power consumption. There are two kinds of crushing chambers, ‘rock-on-rock’ and ‘rock-on-iron’, and each chamber can be converted to the other by replacing a few simple parts. With its wide operation range and high performance, Powerups VSI crushers are the most effective and reliable crusher, especially suitable for manufactured sand, cubical products fractured gravel and material beneficiation.

Feature & Benefits
√ Production gradation remains constant
√ Low contamination rates
√ Unbeatable product shape
√ Safe operation and easy control

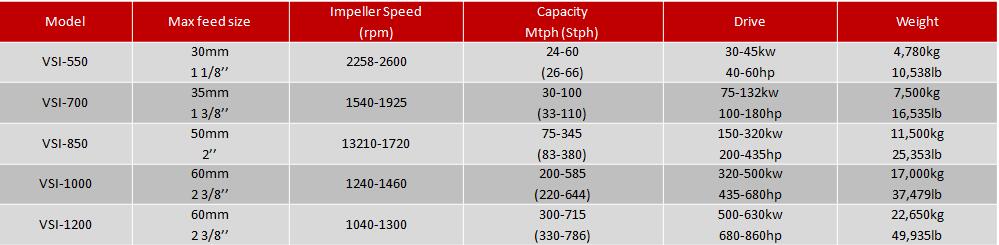

Technical Specification

Note: Technical parameters are subject to change without further notice

Reviews
Powerups VSI vertical shaft impact crusher is widely used in mineral processing, aggregate processing and construction recycling industries, besides, we have been committed to equipment optimization, such as simple and safe operation of the machine, long wear life of wearing parts, and we are aiming to satisfy all my customers worldwide. The VSI crusher comes with 12-month warranty after it’s initially operated at field, alternatively, 18-month warranty after the day of delivery from our workshop.

At Powerups, we specialize in the sales and service to suit all of your crushing, screening, feeding, washing and classifying needs. If your company is interested in learning more about the jaw crusher, cone crusher, impact crusher, feeder, screen, etc and what they can do for you, reach out to us for a free consultation.
